Many years ago, I was taught this compact and intuitive convention to show turning moments. I think it should be more widely known, as it not only is concise and powerful, but also meets the criterion of being an effective form of dual coding which is helpful for both GCSE and A-level Physics students.

Let’s look at an example question.

Let’s start by ‘annotating the hell’ out of the diagram.

We could take moments around any of the marked points A-E on the diagram. However, we’re going to take moments around B as it enables us to ignore the upward reaction force acting on the rule at B. (This force is not shown on the diagram.)

To indicate that we’re going to be considering the sum of the clockwise moments about point B, we use this intuitive notation:

If we consider the sum of anticlockwise moments about point B, we use this:

We lay out our calculations of the total clockwise and anticlockwise moments about B as follows.

We show that we are going to apply the Principle of Moments (the sum of clockwise moments is equal to the sum of anticlockwise moments for an object in equilibrium) like this:

The rest, as they say, is not history but algebra:

I hope you find this ‘momentary’ convention useful(!)

## ‘Killer-joules’ and other abominations

As noted earlier, some students struggle with unit conversions. To take a simple example: if we need to convert 3.7 kilojoules (or ‘killer-joules’ as some insist on calling them *shudders*) into joules, then whilst many students know that the conversion involves applying a factor of one thousand, they do not know whether to multiply 3.7 by a thousand or divide 3.7 by a thousand.

Michael Porter shared a brilliant suggestion for helping students over this hurdle. He suggests that we break down the operation into two parts:

• Consider if we are making the unit larger or smaller.
• If making the unit larger, we must make the number smaller to compensate; and vice versa.

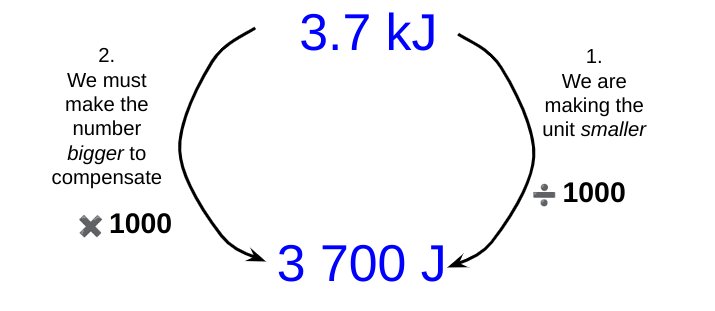

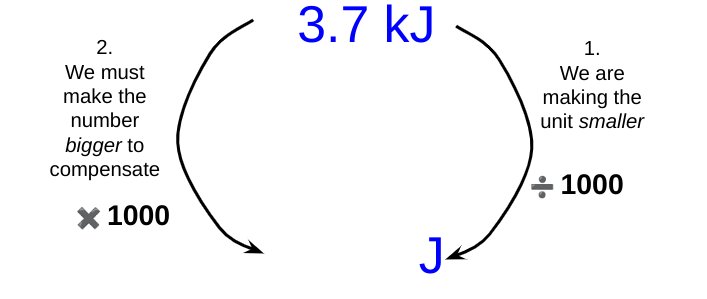

Let’s look at using the Porter system for the example shown above.

(Note: I have used kilojoules for our first example since, at least for GCSE Science calculation contexts, students are unlikely to have to convert kilograms into grams. This is because, of course, the kilogram (not the gram) is the base unit of mass in the SI System.)

By changing from kilojoules to joules we are making the unit smaller, since one kilojoule is larger than one joule.

To keep the measured quantity of energy the same magnitude, we must therefore make the number part of the measurement bigger to compensate for the reduction in size of the unit.

Now let’s look if we had to convert 830 microamps into amps:

### The strange case of time

Obviously 1 minute is a very small quantity of time compared with a whole week. Indeed, our forefathers considered it small as compared with an hour, and called it “one minùte,” meaning a minute fraction — namely one sixtieth — of an hour. When they came to require still smaller subdivisions of time, they divided each minute into 60 still smaller parts, which, in Queen Elizabeth’s days, they called “second minùtes” (i.e., small quantities of the second order of minuteness).

Silvanus P. Thompson, “Calculus Made Easy” (1914)

It is probable that the division of units of time into sixtieths dates back many thousands of years to the ancient Babylonians(!) Is it any wonder that some students find it hard to convert units of time?

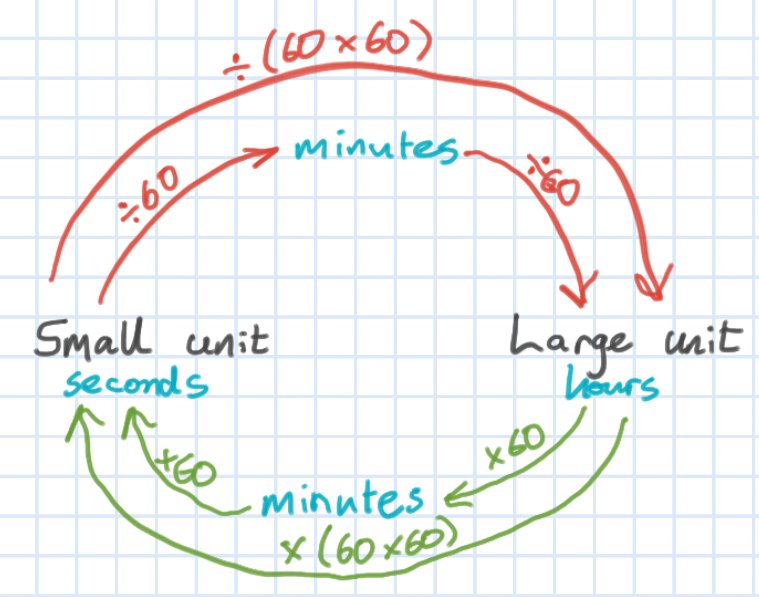

We can use the Porter system to help students with these conversions. For example, what is 7 hours in seconds?

This type of diagram is, I think, very useful for showing students explicitly what we are doing.

## Units, you nit!

The S.I. System of Units is a thing of beauty: a lean, sinewy and utilitarian beauty that is the work of many committees, true; but in spite of that common saw about ‘a camel being a horse designed by a committee’, the S.I. System is truly a thing of rigorous beauty nonetheless.

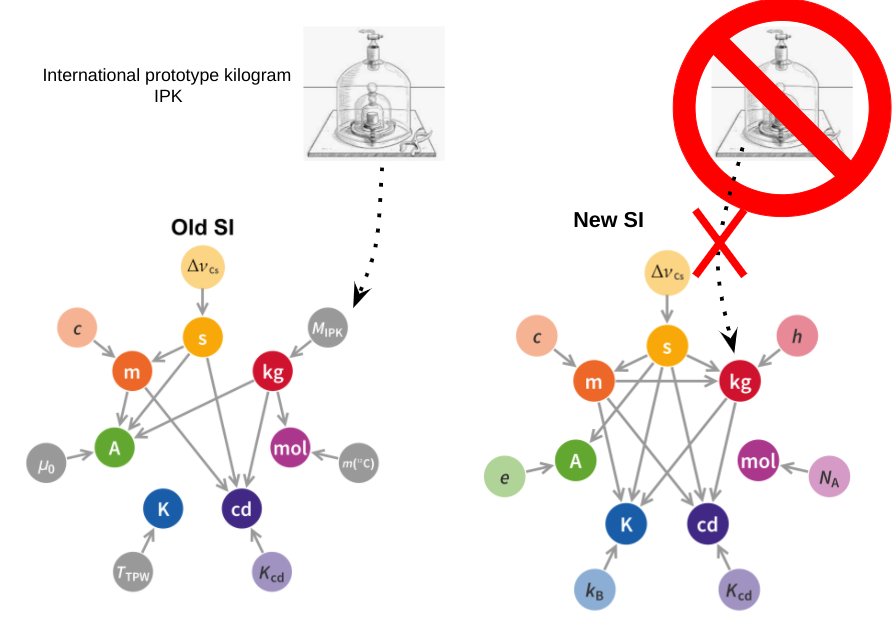

Even the pedestrian Wikipedia entry on the 2019 Redefinition of the S.I. System reads like a lost episode from Homer’s Odyssey. As Odysseus tied himself to the mast of his ship to avoid the irresistible lure of the Sirens, so in 2019 the S.I, System tied itself to the values of a select number of universal physical constants to remove the last vestiges of merely human artifacts such as the now obsolete International Prototype Kilogram.

However, the austere beauty of the S.I. System is not always recognised by our students at GCSE or A-level. ‘Units, you nit!!!’ is a comment that physics teachers have scrawled on student work from time immemorial with varying degrees of disbelief, rage or despair at errors of omission (e.g. not including the unit with a final answer); errors of imprecision (e.g. writing ‘j’ instead of ‘J’ for ‘joule — unforgivable!); or errors of commission (e.g. changing kilograms into grams when the kilogram is the base unit, not the gram — barbarous!).

The saddest occasion for writing ‘Units, you nit!’ at least in my opinion, is when a student has incorrectly converted a prefix: for example, changing millijoules into joules by multiplying by one thousand rather than dividing by one thousand so that a student writes that 5.6 mJ = 5600 J.

This odd little issue can affect students from across the attainment range, so I have developed a procedure to deal with it which is loosely based on the Singapore Bar Model.

One millijoule is a teeny tiny amount of energy, so when we convert it joules it is only a small portion of one whole joule. So to convert mJ to J we divide by 1000.

One joule is a much larger quantity of energy than one millijoule, so when we convert joules to millijoules we multiply by one thousand because we need one thousand millijoules for each single joule.

In time, and if needed, you can move to a simplified version to remind students.

Strangely, one of the unit conversions that some students find most difficult in the context of calculations is time: for example, hours into seconds. A diagram similar to the one below can help students over this ‘hump’.

These diagrams may seem trivial, but we must beware of ‘the Curse of Knowledge’: just because we find these conversions easy (and, to be fair, so do many students) that does not mean that all students find them so.

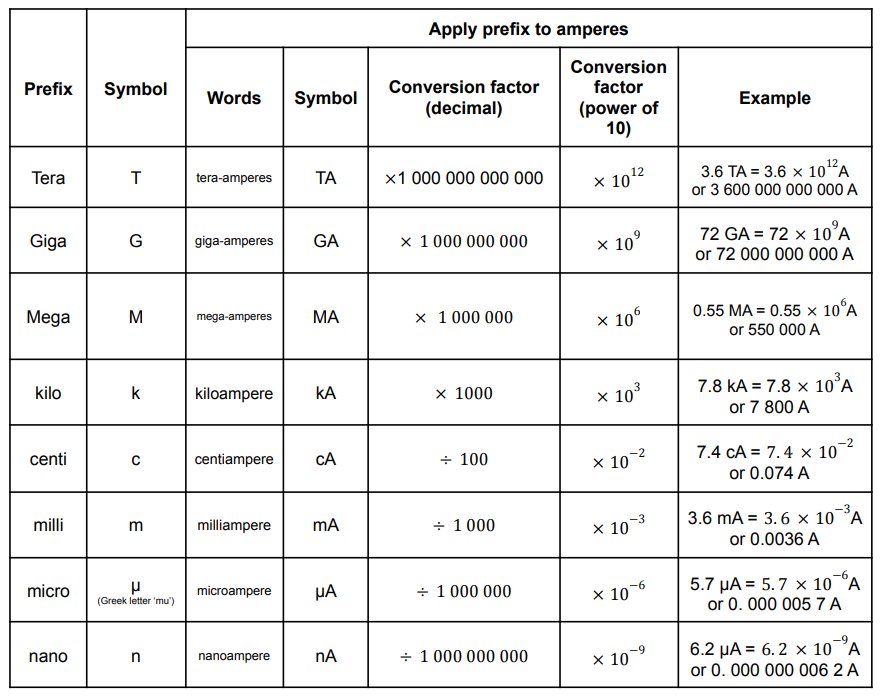

The conversions that students may be asked to do from memory are listed below (in the context of amperes).

## Dual Coding and Equations of Motion for GCSE

Necessity may well be the mother of invention, but teacher desperation is often the mother of new pedagogy.

For an unconscionably long time, I think that I failed to adequately help students understand the so called ‘equations of motion’ (the mathematical descriptions of uniformly accelerated motion using the standard v, u, a, s and t notation) because I suffered from the ‘curse of knowledge’: I did not find the topic hard, so I naturally assumed that students wouldn’t either. This, sadly, proved not to be the case, even when the equation was printed on the equation sheet!

What follows is a summary of a dual coding technique that I have found really helpful in helping students become confident with problems involving the ‘equations of motion’. This is especially true at GCSE, where students encounter formulas such as

for the first time.

### Applying dual coding to an equation of motion problem

EXAMPLE: A car is travelling at 6.0 m/s. As the car passes a lamp-post it accelerates up to a velocity of 14.2 m/s over a distance of 250 m. Calculate a) the acceleration; and b) the time taken for this change.

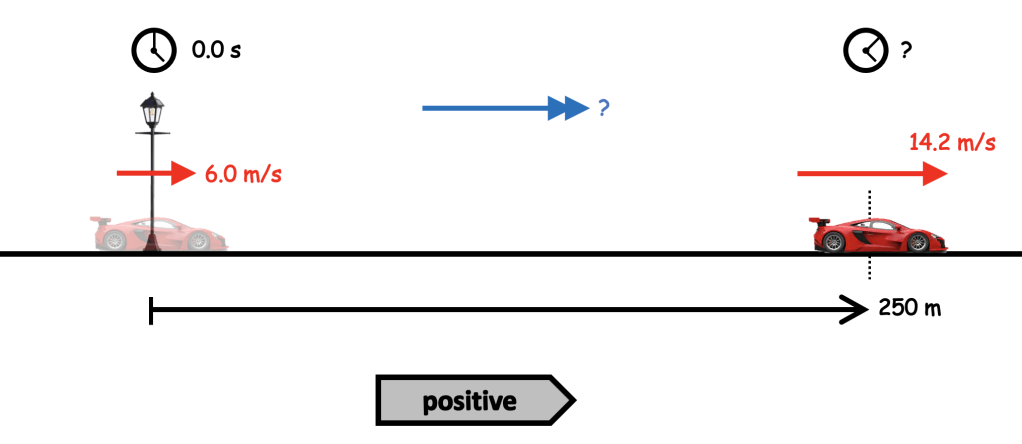

The problem can be represented using the dual coding convention as shown below.

Note that the arrow for v is longer than the arrow for u since the car has a positive acceleration; that is to say, the car in this example is speeding up. Also, the convention has a different style of arrow for acceleration, emphasising that it is an entirely different type of quantity from velocity.

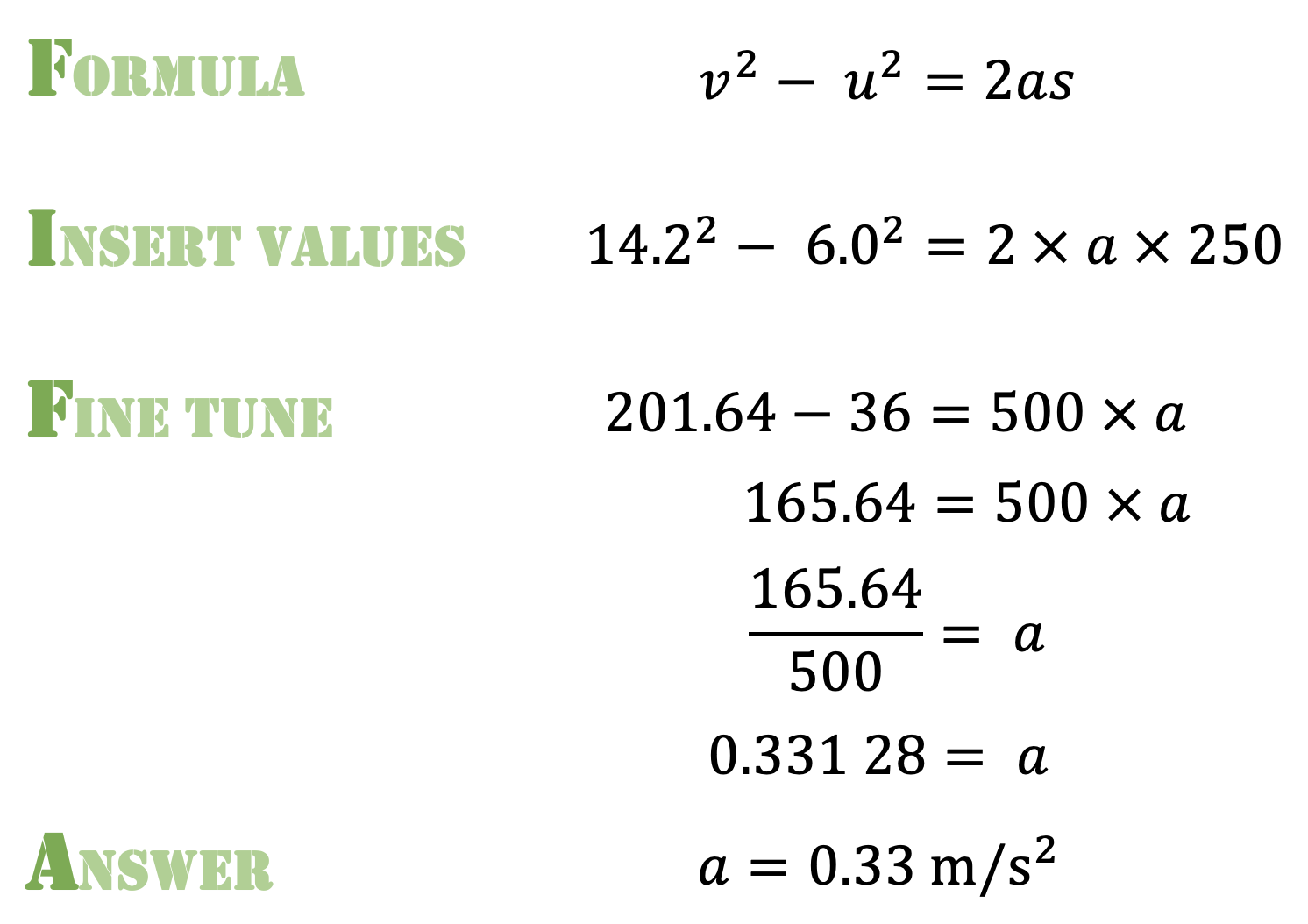

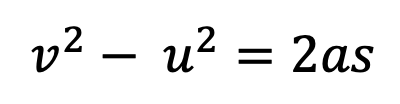

We can now answer part (a) using the FIFA calculation system.

Part (b) can be answered as shown below.

### Visualising Stopping Distance Questions

These can be challenging for many students, as we often seem to grabbing numbers and manipulating them without rhyme or reason. Dual coding helps make our thinking explicit,

EXAMPLE: A driver has a reaction time of 0.7 seconds. The maximum deceleration of the car is 2.6 metres per second squared. Calculate the overall stopping distance when the car is travelling at 13 m/s.

We need to calculate both the thinking distance and the braking distance to solve this problem

The acceleration of the car is zero during the driver’s reaction time, since the brakes have not been applied yet.

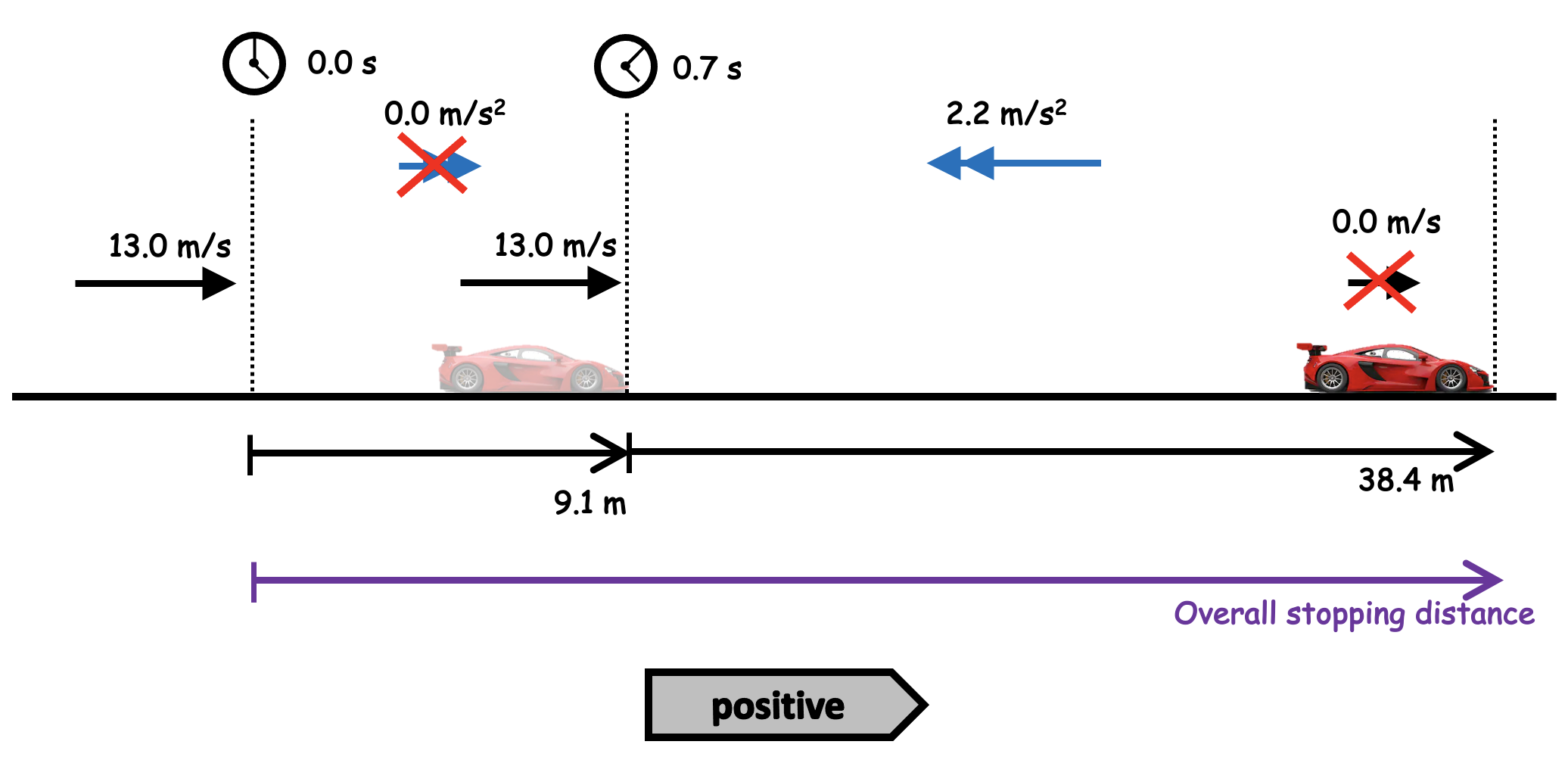

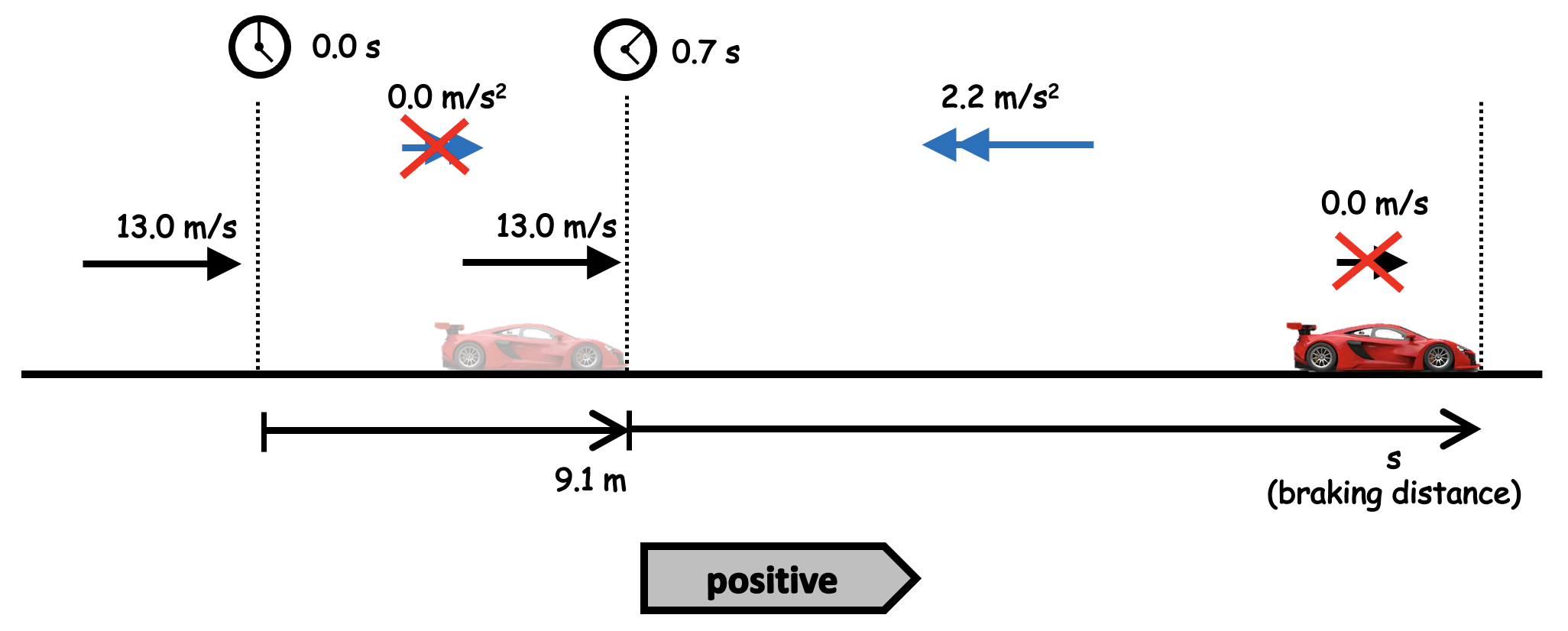

We visualise the first part of the problem like this.

Now let’s look at the second part of the question.

There are three things to note:

• Since the car comes to a complete stop, the final velocity v is zero.
• The acceleration is negative (shown as a backward pointing arrow) since we are talking about a deceleration: in other words, the velocity gradually decreases in size from the initial velocity value of u as the car traverses the distance s.
• Since the second part of the question does not involve any consideration of time we have omitted the ‘clock’ symbols for the second part of the journey.

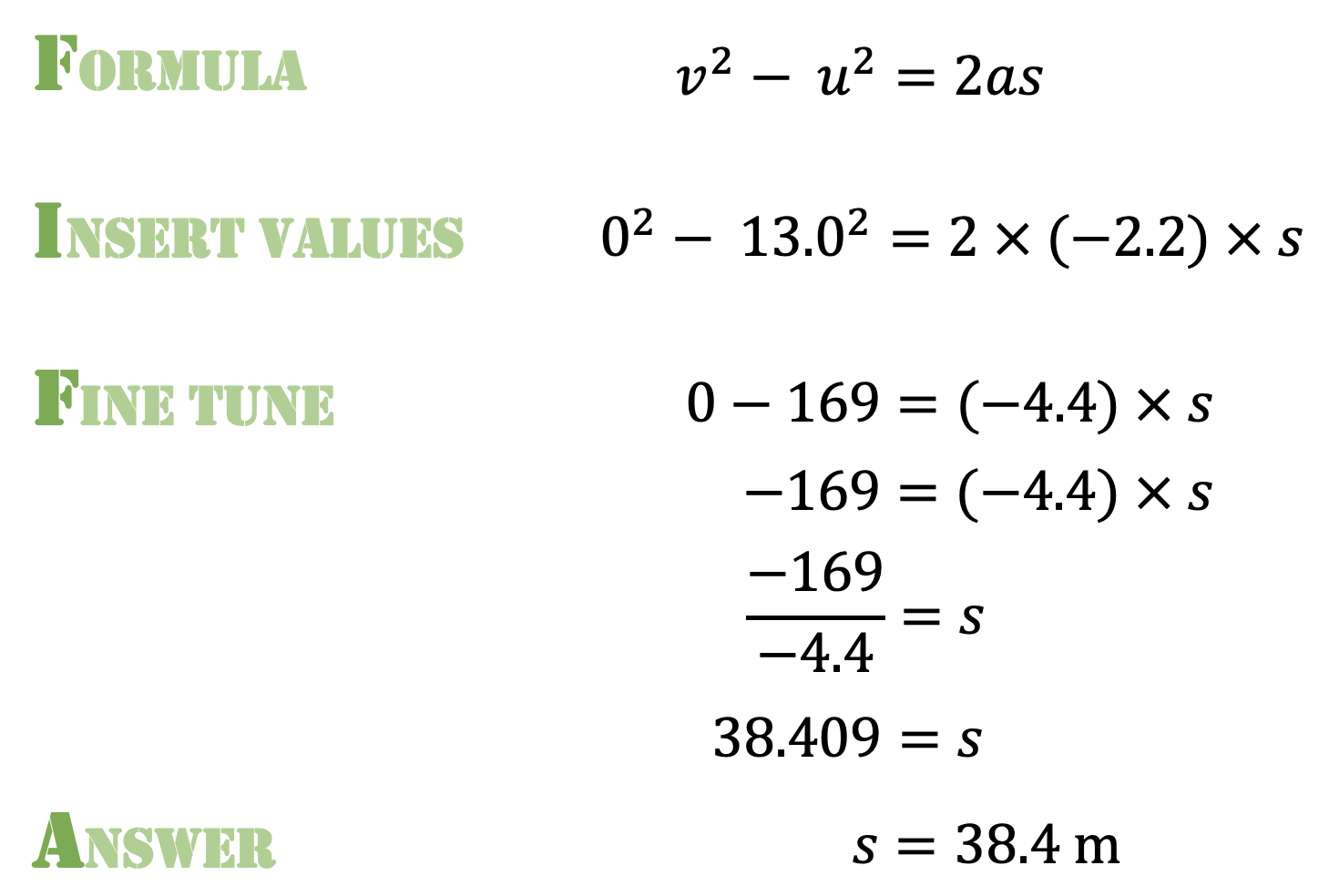

We can now apply FIFA:

Since the acceleration arrow points in the opposite direction to the positive arrow, we enter it as a negative value. When we get to the third line of the Fine Tune stage, we see that a negative 169 divided by negative 4.4 gives positive 38.408 — in other words, the dual coding convention does the hard work of assigning positive and negative values!

And finally, we can see that the overall stopping distance is 9.1 + 38.4 = 47.5 metres,

### Conclusion

I have found this form of dual coding extremely useful in helping students understand the easily-missed subtleties of motion problems, and hope other science teachers will give it a try.

If you have enjoyed this post, you might enjoy these also:

## A Gnome-inal Value for ‘g’

. . . setting storms and billows at defiance, and visiting the remotest parts of the terraqueous globe.

Samuel Johnson, The Rambler, 17 April 1750

That an object in free fall will accelerate towards the centre of our terraqueous globe at a rate of 9.81 metres per second per second is, at best, only a partial and parochial truth. It is 9.81 metres per second per second in the United Kingdom, yes; but the value of both acceleration due to free fall and the gravitational field strength vary from place to place across the globe (and in the SI System of measurement, the two quantities are numerically equal and dimensionally equivalent).

For example, according to Hirt et al. (2013) the lowest value for g on the Earth’s surface is atop Mount Huascarán in Peru where g = 9.7639 m s-2 and the highest is at the surface of the Arctic Ocean where g = 9.8337 m s-2.

### Why does g vary?

There are three factors which can affect the local value of g.

Firstly, the distribution of mass within the volume of the Earth. The Earth is not of uniform density and volumes of rock within the crust of especially high or low density could affect g at the surface. The density of the rocks comprising the Earth’s crust varies between 2.6 – 2.9 g/cm3 (according to Jones 2007). This is a variation of 10% but the crust only comprises about 1.6% of the Earth’s mass since the density of material in the mantle and core is far higher so the variation in g due this factor is probably of the order of 0.2%.

Secondly, the Earth is not a perfect sphere but rather an oblate spheroid that bulges at the equator so that the equatorial radius is 6378 km but the polar radius is 6357 km. This is a variation of 0.33% but since the gravitational force is proportional to 1/r2 let’s assume that this accounts for a possible variation of the order of 0.7% in the value of g.

Thirdly, the acceleration due to the rotation of the Earth. We will look in detail at the theory underlying this in a moment, but from our rough and ready calculations above, it would seem that this is the major factor accounting for any variation in g: that is to say, g is a minimum at the equator and a maximum at the poles because of the Earth’s rotation.

### The Gnome Experiment

In 2012, precision scale manufacturers Kern and Sohn used this well-known variation in the value of g to embark on a highly successful advertising campaign they called the ‘Gnome Experiment’ (see link 1 and link 2).

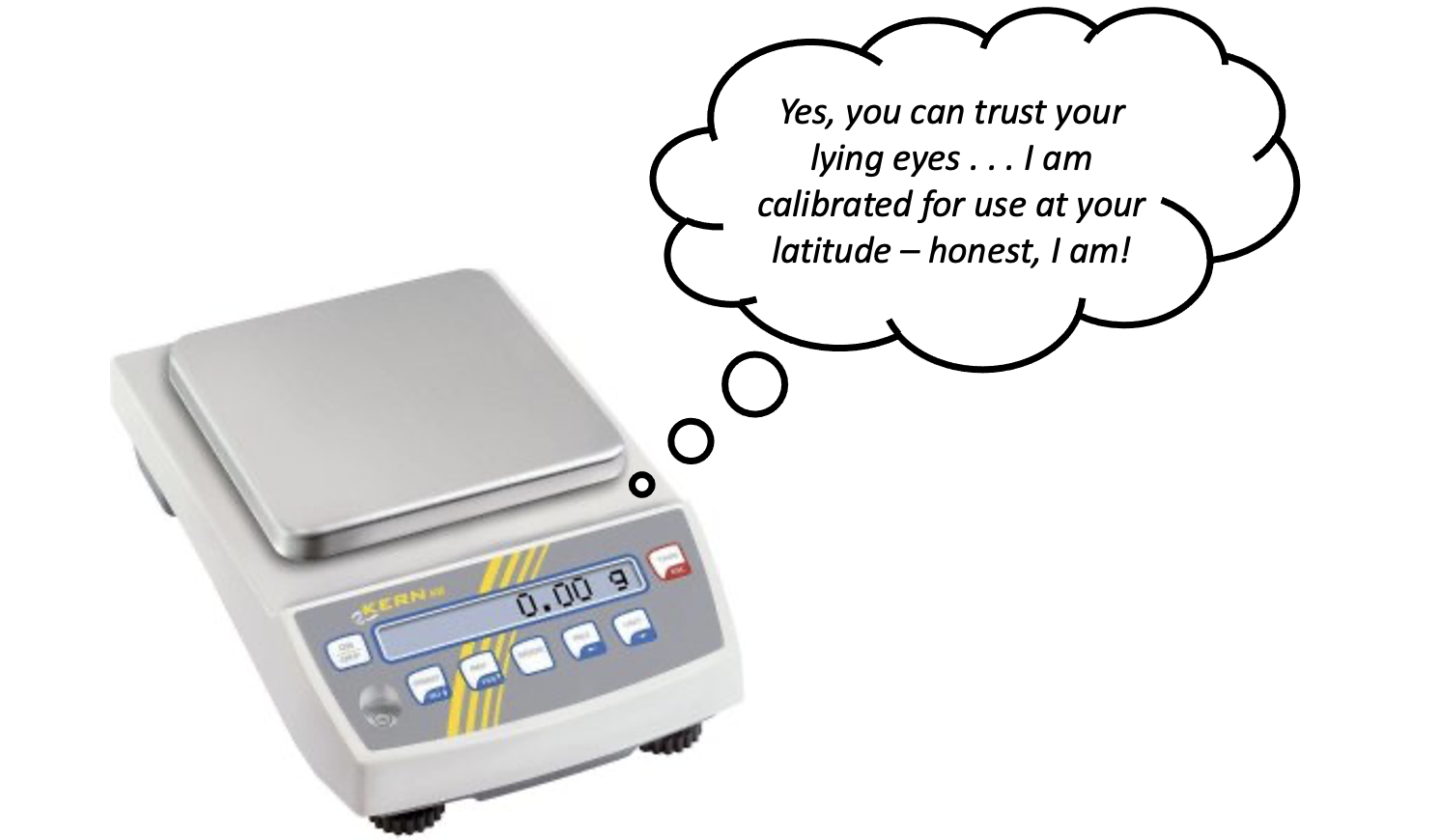

Whatever units their lying LCD displays show, electronic scales don’t measure mass or even weight: they actually measure the reaction force the scales exert on the item in their top pan. The reading will be affected if the scales are accelerating.

In diagram B, the apple and scales are in an elevator that is accelerating upward at 1.00 metres per second per second. The resultant upward force must therefore be larger than the downward weight as shown in the free body diagram. The scales show a reading of 1.081/9.81 – 0.110 194 kg = 110.194 g.

In diagram C, the the apple and scales are in an elevator that is accelerating downwards at 1.00 metres per second per second. The resultant upward force must therefore be smaller than the downward weight as shown in the free body diagram. The scales show a reading of 0.881/9.81 – 0.089 806 kg = 89.806 g.

### Never mind the weight, feel the acceleration

Now let’s look at the situation the Kern gnome mentioned above. The gnome was measured to have a ‘mass’ (or ‘reaction force’ calibrated in grams, really) of 309.82 g at the South Pole.

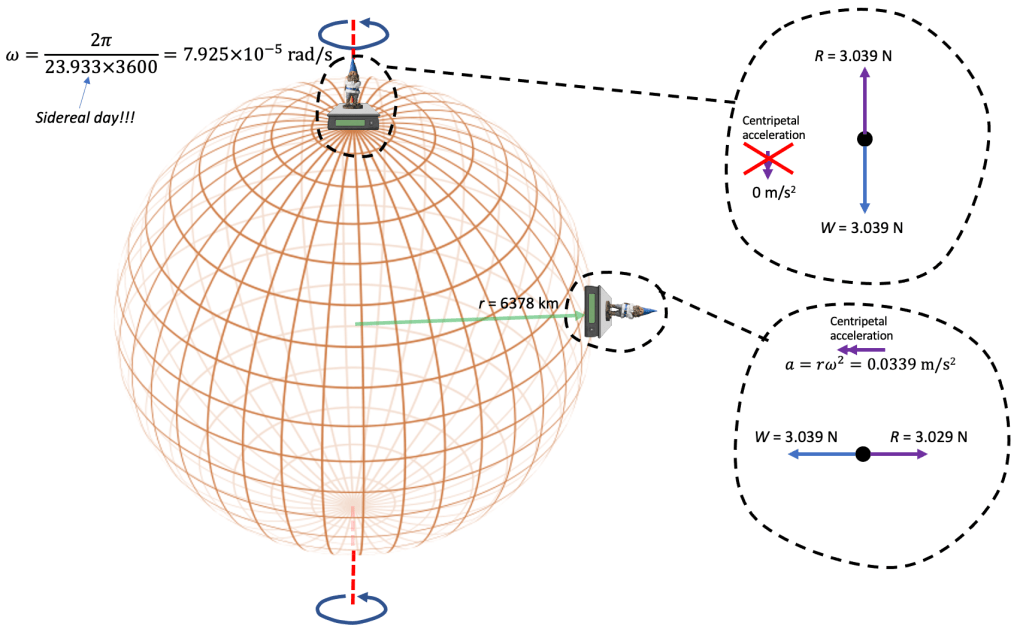

Showing this situation on a diagram:

Looking at the free body diagram for Kern the Gnome at the equator, we see that his reaction force must be less than his weight in order to produce the required centripetal acceleration towards the centre of the Earth. Assuming the scales are calibrated for the UK this would predict a reading on the scales of 3.029/9.81= 0.30875 kg = 308.75 g.

The actual value recorded at the equator during the Gnome Experiment was 307.86 g, a discrepancy of 0.3% which would suggest a contribution from one or both of the first two factors affecting g as discussed at the beginning of this post.

Although the work of Hirt et al. (2013) may seem the definitive scientific word on the gravitational environment close to the Earth’s surface, there is great value in taking measurements that are perhaps more directly understandable to check our comprehension: and that I think explains the emotional resonance that many felt in response to the Kern Gnome Experiment. There is a role for the ‘artificer’ as well as the ‘philosopher’ in the scientific enterprise on which humanity has embarked, but perhaps Samuel Johnson put it more eloquently:

The philosopher may very justly be delighted with the extent of his views, the artificer with the readiness of his hands; but let the one remember, that, without mechanical performances, refined speculation is an empty dream, and the other, that, without theoretical reasoning, dexterity is little more than a brute instinct.

Samuel Johnson, The Rambler, 17 April 1750

### References

Hirt, C., Claessens, S., Fecher, T., Kuhn, M., Pail, R., & Rexer, M. (2013). New ultrahigh‐resolution picture of Earth’s gravity fieldGeophysical research letters40(16), 4279-4283.

Jones, F. (2007). Geophysics Foundations: Physical Properties: Density. University of British Columbia website, accessed on 2/5/21.

<

## FIFA and Really Challenging GCSE Physics Calculations

‘FIFA’ in this context has nothing to do with football; rather, it is a mnemonic that helps KS3 and KS4 students from across the attainment range engage productively with calculation questions.

FIFA stands for:

• Formula
• Insert values
• Fine-tune

From personal experience, I can say that FIFA has worked to boost physics outcomes in the schools I have worked in. What is especially gratifying, however, is that a number of fellow teaching professionals have been kind enough to share their experience of using it:

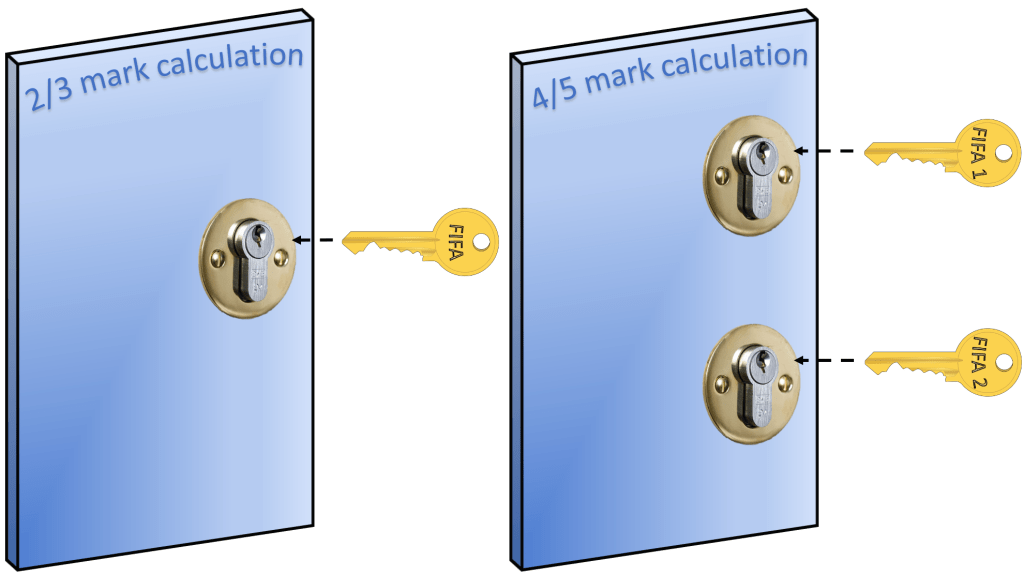

### Framing FIFA as a modular approach

Straightforward calculation questions (typically 2 or 3 marks) can be ‘unlocked’ using the original FIFA approach. More challenging questions (typically 4 or 5 marks) can often be handled using the FIFA-one-two approach.

However, what about the most challenging 5 or 6 mark questions that are targeted at Grade 8/9? Can FIFA help in solving these?

I believe it can. But before we dive into that, let’s look at a more traditional, non-FIFA, algebraic approach.

### A challenging freezing question: the traditional (non-FIFA) algebraic approach

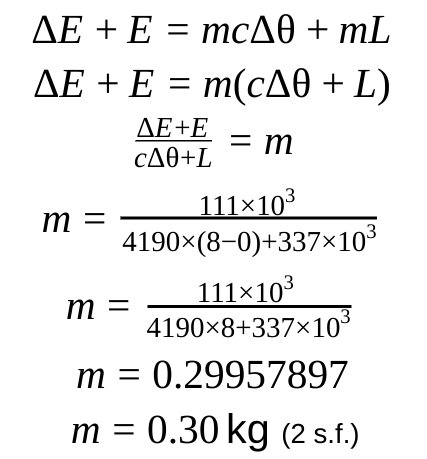

A pdf of this question is here. A traditional algebraic approach to solving this problem would look like this:

This approach would be fine for confident students with high previous attainment in physics and mathematics. I will go further and say that it should be positively encouraged for students who possess — in Edward Gibbon’s words — that ‘happy disposition’:

But the power of instruction is seldom of much efficacy, except in those happy dispositions where it is almost superfluous.

Edward Gibbon, The Decline and Fall of the Roman Empire

But what about those students who are more akin to the rest of us, and for whom the ‘power of instruction’ is not a superfluity but rather a necessity on which they depend?

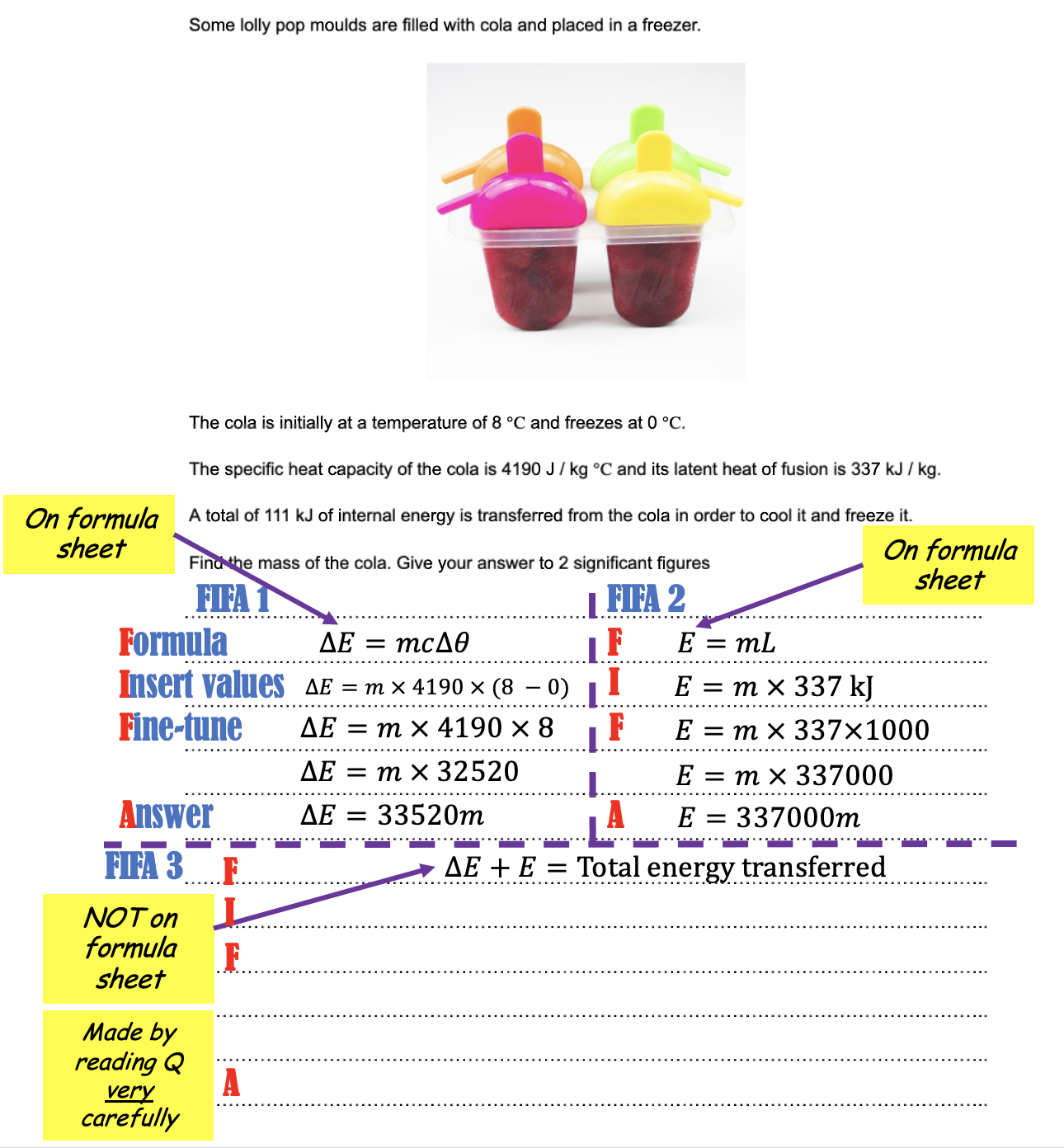

### A challenging freezing question: the FIFA-1-2-3 approach

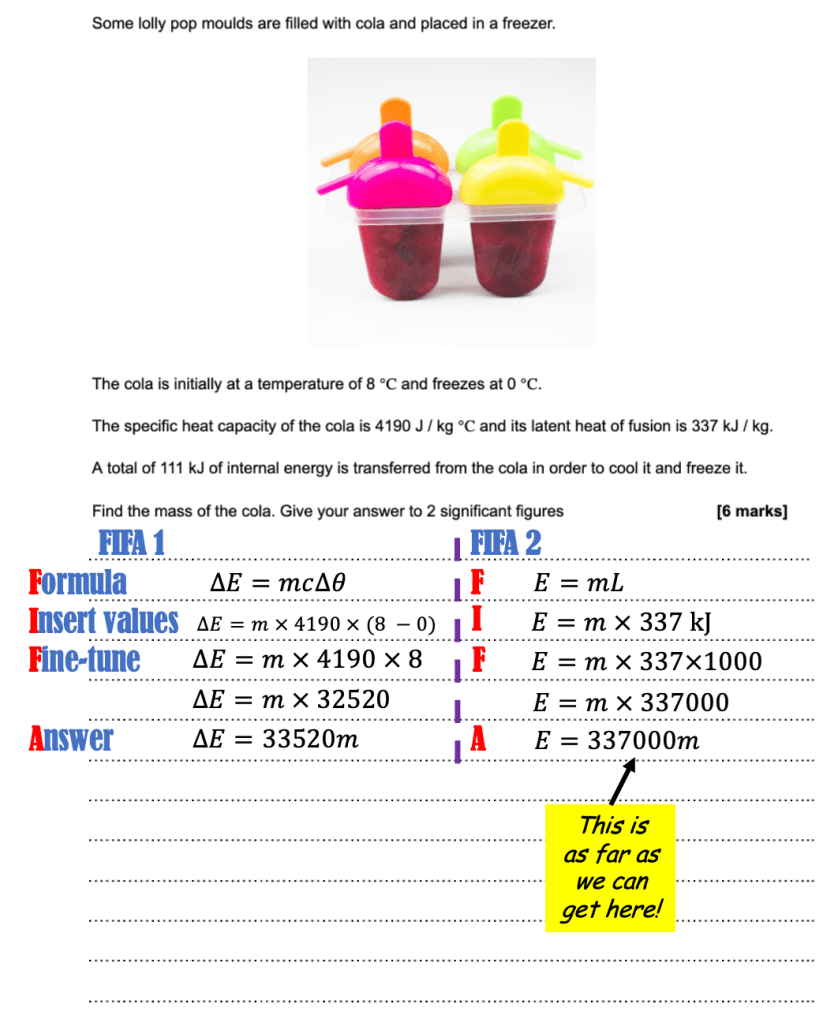

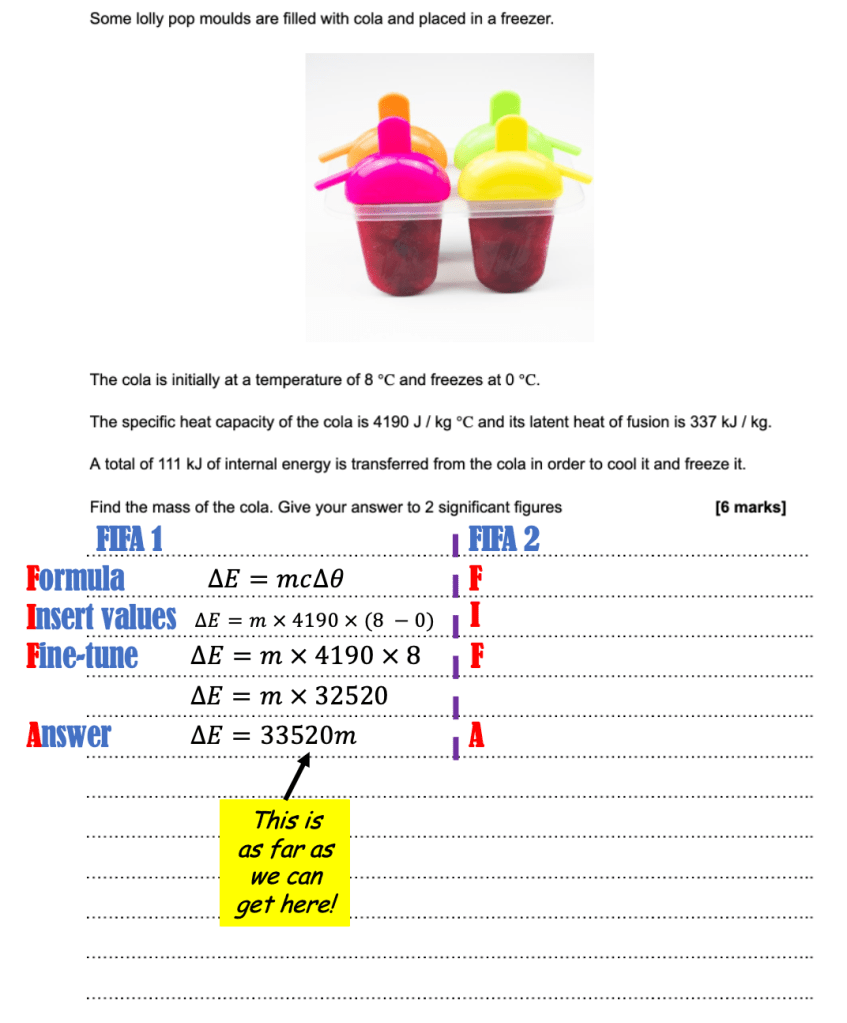

Since this question involves both cooling and freezing it seems reasonable to start with the specific heat capacity formula and then use the specific latent heat formula:

FIFA-one-two isn’t enough. We must resort to FIFA-1-2-3.

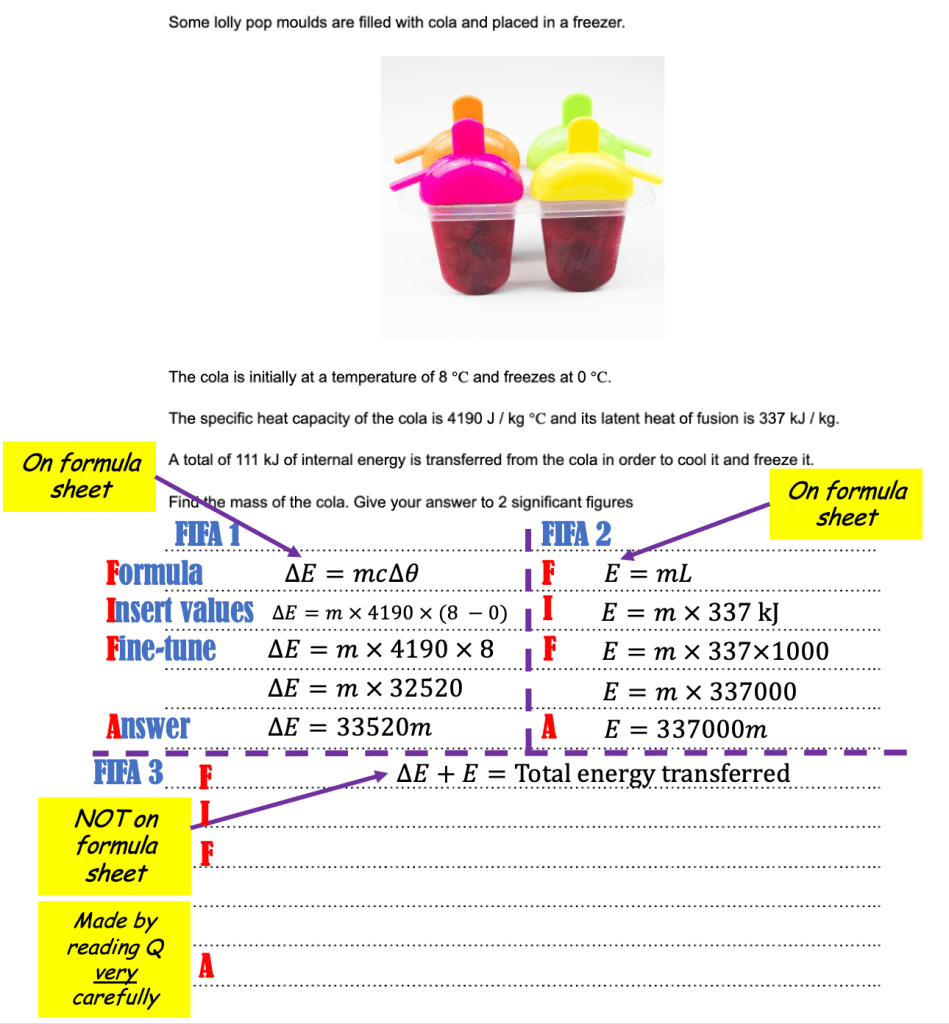

What is noteworthy here is that the third FIFA formula isn’t on the formula sheet and is not on the list of formulas that need to be memorised. Instead, it is made by the student based on their understanding of physics and a close reading of the question.

Challenging? Yes, undoubtedly. But students will have unlocked some marks (up to 4 out of 6 by my estimation).

FIFA isn’t a royal road to mathematical mastery (although it certainly is a better bet than the dreaded ‘formula triangle’ that I and many other have used in the past). FIFA is the scaffolding, not the finished product.

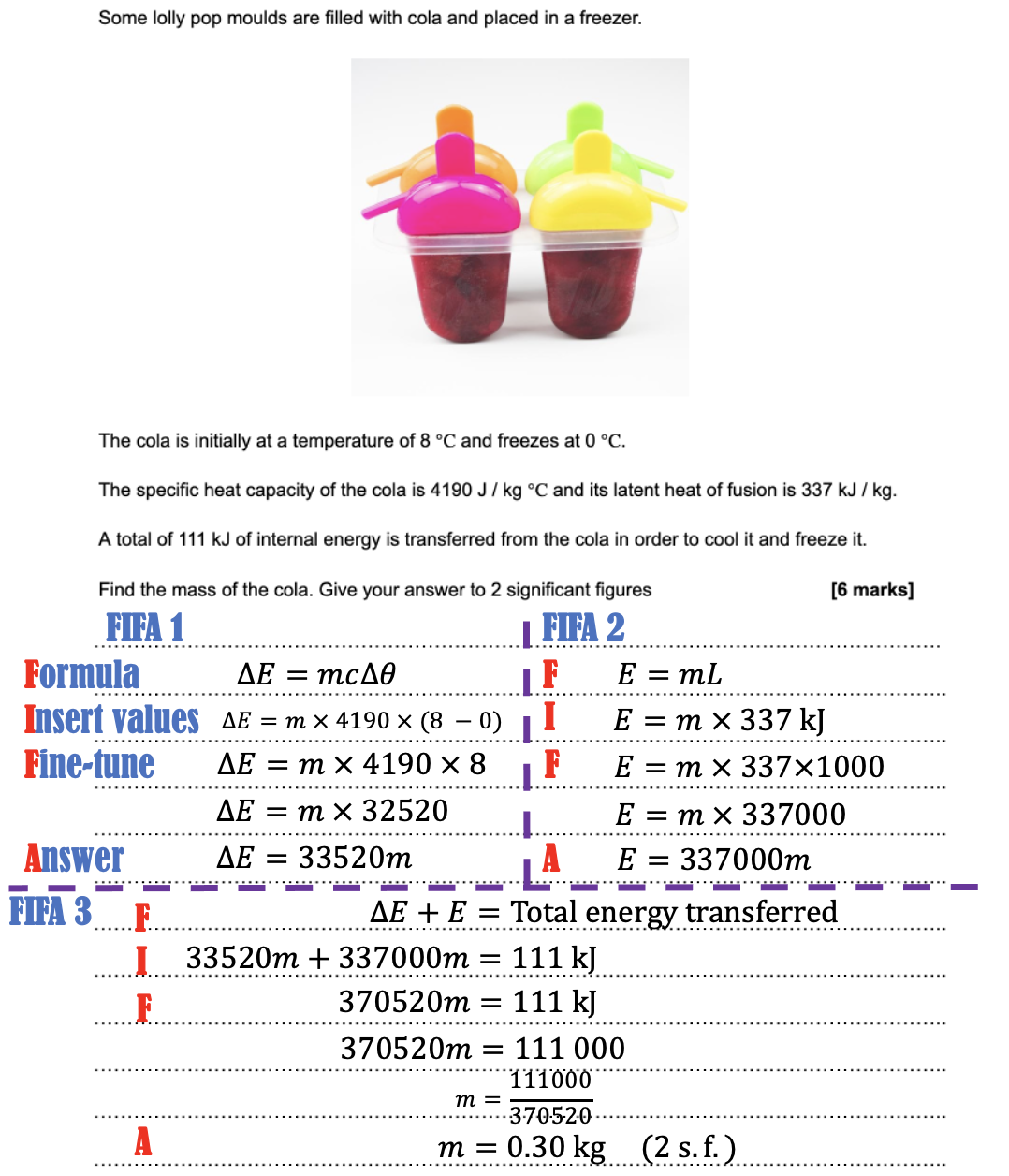

We complete the FIFA-1-2-3 process as follows:

### Conclusion: FIFA fixes it

The FIFA-system was born of the despair engendered when you mark a set of mock exam papers and the majority of pages are blank: students had not even attempted the calculation skills.

In my experience, FIFA fixes that — students are much more willing to start a calculation question. And that means that, even when they cannot successfully navigate to a ‘full mark’ conclusion, they gain at least some marks, and and one does not have to be a particularly perceptive scholar of the human heart to understand that gaining ‘some marks‘ is more motivating than ‘no marks‘.

Update: Ed Southall makes a persuasive case against formula triangles in this 2016 article.

## Physics Six Mark Calculation Question? Give it the old FIFA-One-Two!

Many students struggle with Physics calculation questions at KS3 and KS4. Since 40% of the marks on GCSE Physics papers are for maths, this is a real worry for their teachers.

The FIFA system (if that’s not too grandiose a description) provides a minimal and flexible framework that helps students to successfully attempt calculation questions.

Since adopting the system, we encounter far fewer blanks on test and exam scripts where students simply skip over a calculation question. A typical student can gain 10-20 marks.

The FIFA system is outlined here but essentially consists of:

• Formula: students write the formula or equation
• Insert values: students insert the known data from the question.
• Fine-tune: rearrange, convert units, simplify etc.

The “Fine-tune” stage is not — repeat, not — synonymous with re-arranging and is designed to be “creatively ambiguous” and allow space to “do what needs to be done” and can include unit conversion (e.g. kilowatts to watts), algebraic rearrangement and simplification.

### The FIFA-One-Two

Uniquely for Physics, instead of the dreaded “Six Marker” extended writing question, we have the even-more-dreaded “Six Marker” long calculation question. (Actually, they can be awarded anywhere between 4 to 6 marks, but we’ll keep calling them “Six Markers” for convenience.)

The “FIFA-one-two” strategy can help students gain marks in these questions.

Let’s look how it could be applied to a typical “Six mark” long calculation question. We prepare the ground like this:

Since the question mentions the power output of the kettle first, let’s begin by writing down the energy transferred equation.

Next we insert the values. It’s quite helpful to write in any “non standard” units such as kilowatts, minutes etc as a reminder that these need to be converted in the Fine-tune phase.

And so we arrive at the final answer for this first section:

Next we write down the specific heat capacity equation:

And going through the second FIFA operation:

### Conclusion

I think every “Six Marker” extended calculation question can be approached in a productive way using the FIFA-One-Two approach.

This means that, even if students can’t reach the final answer, they will pick up some method marks along the way.

I hope you give the FIFA-One-Two method a go with your students.

You can read more about using the FIFA system here: ‘Using the FIFA system for really challenging GCSE physics calculations‘.

Update: Ed Southall makes a very persuasive case against formula triangle in this 2016 article.

## FIFA for the GCSE Physics calculation win

Student: Did you know FIFA is also the name of a video game, Sir?

Me: Really?

Student: Yeah. It’s part of a series. I just got FIFA 20. It’s one of my favourite games ever.

Me: Goodness me. I had no idea. I just chose the letters ‘FIFA’ completely and utterly at random!

The FIFA method is an AQA mark scheme-friendly* way of approaching GCSE Physics calculation questions. (It is also useful for some Y12 Physics students.)

I mentioned it in a previous blog and @PedagogueSci was kind enough to give it a boost here, so I thought I’d explain the method in a separate blog post. (Update: you can also watch my talk at ChatPhysics Live 2021 here.)

The FIFA method:

1. Avoids the use of formula triangles
2. Minimises the cognitive load on students when approaching calculations.

### Why we shouldn’t use formula triangles

During a university admissions interview for veterinary medicine, I asked a prospective student to explain how they would make up a solution for infusion into a dog. Part of the answer required them to work out the volume required for a given amount and concentration. The candidate started off by drawing a triangle, then hesitated, eventually giving up in despair. […]

They are a trick that hides the maths: students don’t apply the skills they have previously learned. This means students don’t realise how important maths is for science.

I’m also concerned that if students can’t rearrange simple equations like the one above, they really can’t manage when equations become more complex.

[Update: this 2016 article from Ed Southall also makes a very persuasive case against formula triangle.]

I believe the use of formula triangle also increases (rather than decreases) the cognitive load on students when carrying out calculations. For example, if the concentration c is 0.5 mol dm-3 and the number of moles n required is 0.01 mol, then in order to calculate the volume V they need to:

• recall the relevant equation and what each symbol means and hold it in working memory
• recall the layout of symbols within the formula triangle and either (a) write it down or (b) hold it in working memory
• recall that n and c are known values and that V is the unknown value and hold this information in working memory when applying the formula triangle to the problem

### The FIFA method in use (part 1)

The FIFA acronym stands for:

• FORMULA
• INSERT VALUES
• FINE TUNE (this often, but not always, equates to rearranging the formula)

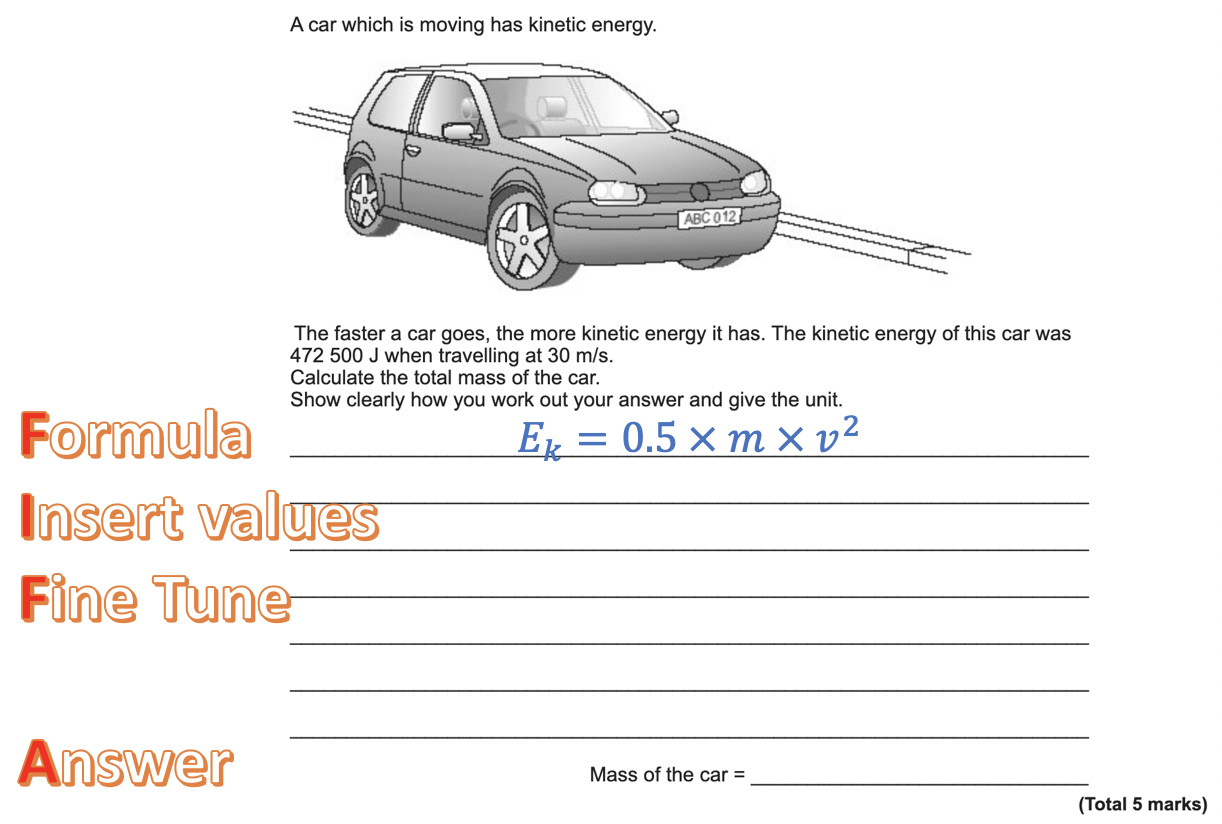

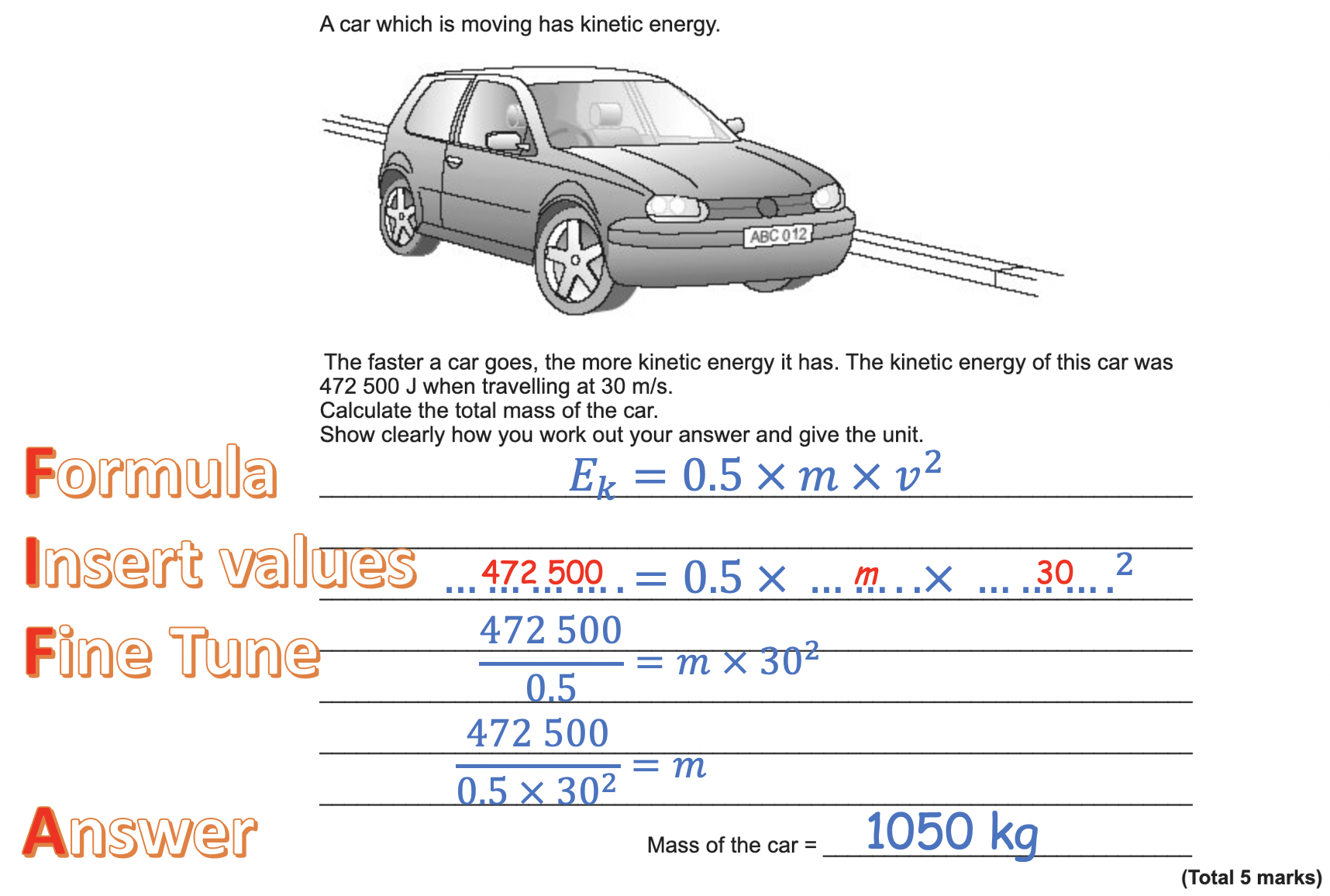

Lets look at applying it for a typical higher level GCSE Physics calculation question

Students have to recall the relevant equation as it is not given on the Data and Formula Sheet. They write it down. This is an important step as once it is written down they no longer have to hold it in their working memory.

Note that this is less cognitively demanding on the student’s working memory as they only have to recall the formula on its own; they do not have to recall the formula triangle associated with it.

Students find it encouraging that on many mark schemes, the selection of the correct equation may gain a mark, even if no further steps are taken.

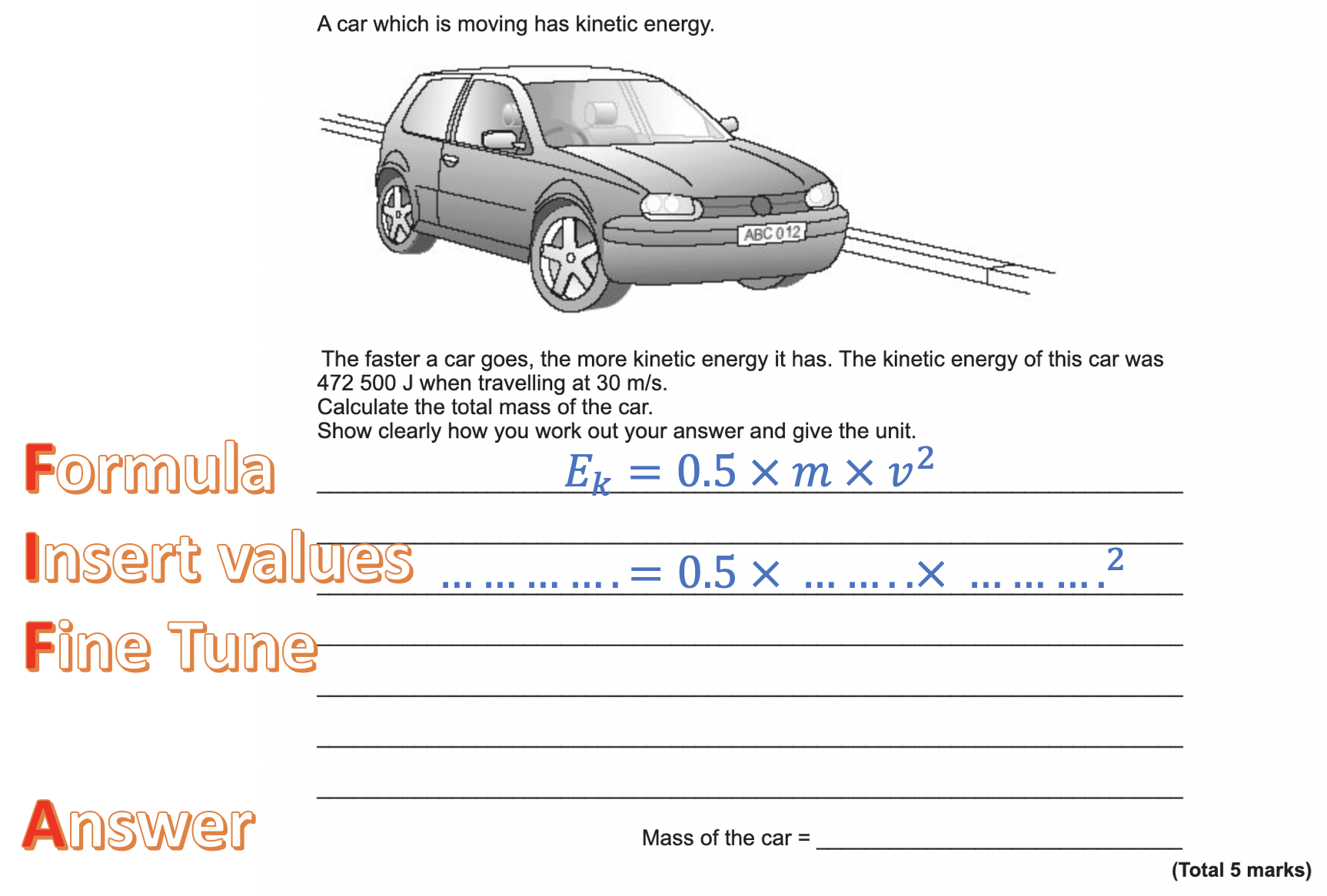

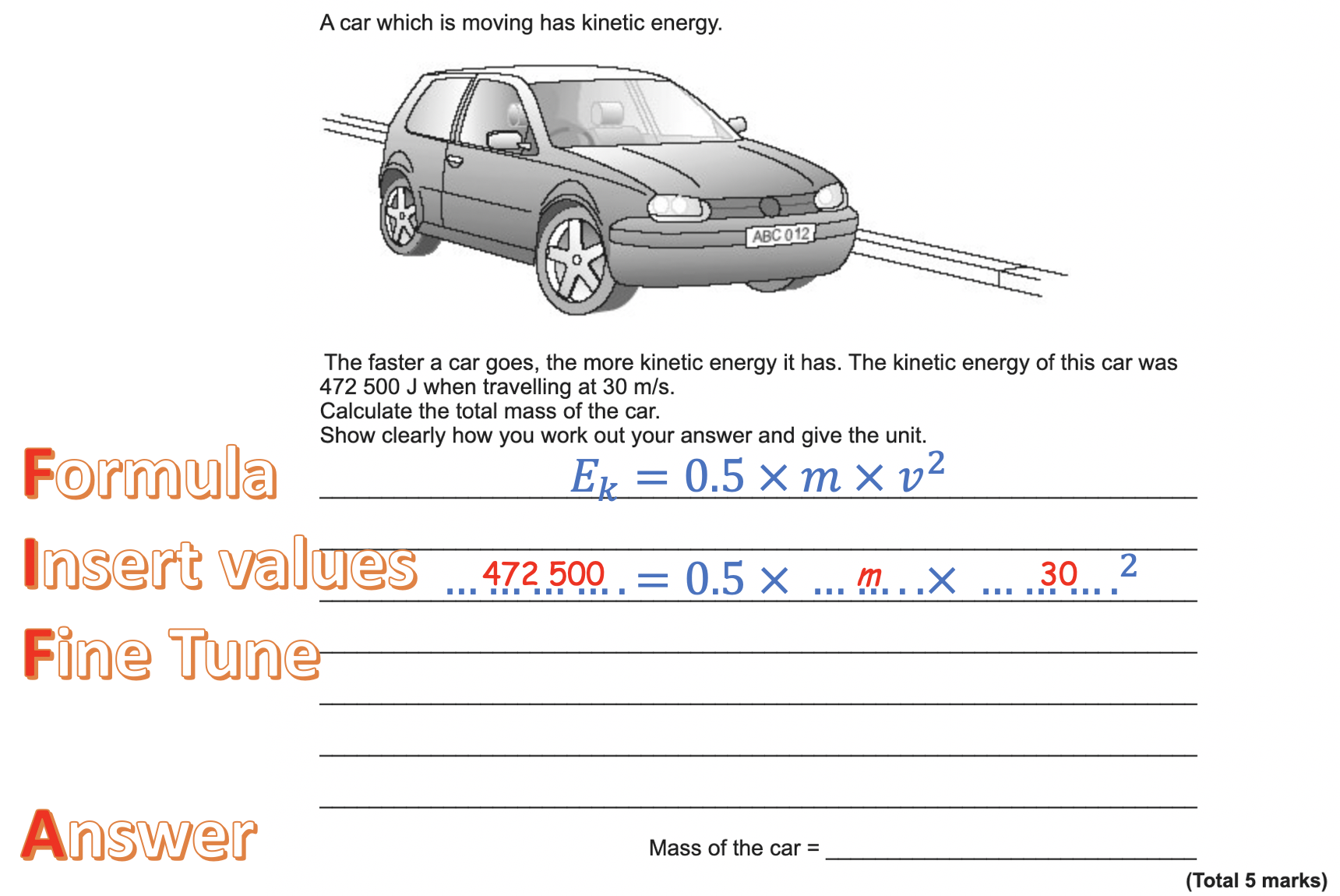

Next, we insert the values. I find it useful to provide a framework for this such as:

We can ask general questions such as: “What data are in the question?” or more focused questions such as “Yes or no: are we told what the kinetic energy store is?” and follow up questions such as “What is the kinetic energy? What units do we use for that?” and so on.

Note that since we are considering each item of data individually and in a sequence determined by the written formula, this is much less cognitively demanding in terms of what needs to be held in the student’s working memory than the formula triangle method.

Note also that on many mark schemes, a mark is available for the correct substitution of values. Even if they were not able to proceed any further, they would still gain 2/5 marks. For many students, the notion of incremental gain in calculation questions needs to be pushed really hard otherwise they will not attempt these “scary” calculation questions.

Next we are going to “fine tune” what we have written down in order to calculate the final answer. In this instance, the “fine tuning” process equates to a simple algebraic rearrangement. However, it is useful to leave room for some “creative ambiguity” here as we can also use the “fine tuning” process to resolve difficulties with units. Tempting though it may seem, DON’T change FIFA to FIRA.

We fine tune in three distinct steps (see addendum):

Finally, we input the values on a calculator to give a final answer. Note that since AQA have declined to provide a unit on the final answer line, a mark is available for writing “kg” in the relevant space — a fact which students find surprising but strangely encouraging.

The key idea here is to be as positive and encouraging as possible. Even if all they can do is recall the formula and remember that mass is measured in kg, there is an incremental gain. A mark or two here is always better than zero marks.

### The FIFA method in use (part 2)

In this example, we are using the creative ambiguity inherent in the term “fine tune” rather than “rearrange” to resolve a possible difficulty with unit conversion.

In this example, we resolve another potential difficulty with unit conversion during the our creatively ambiguous “fine tune” stage:

The emphasis, as always, is to resolve issues sequentially and individually in order to minimise cognitive overload.

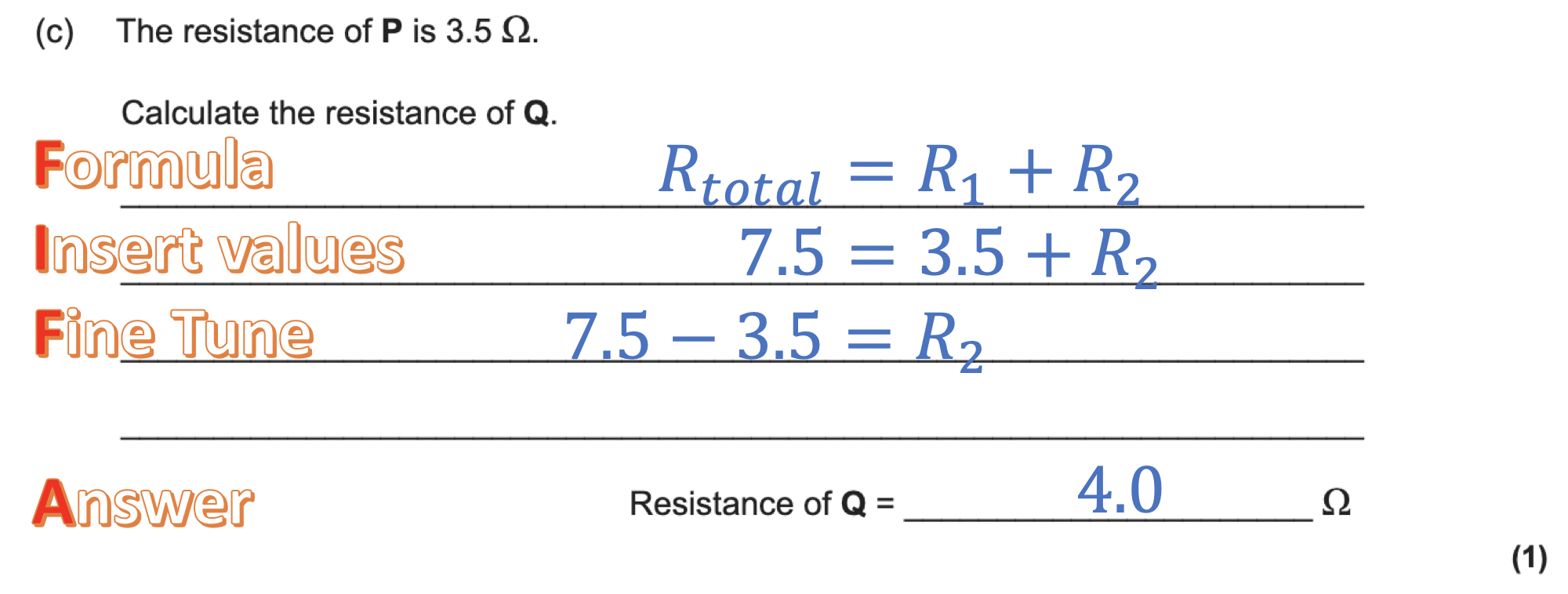

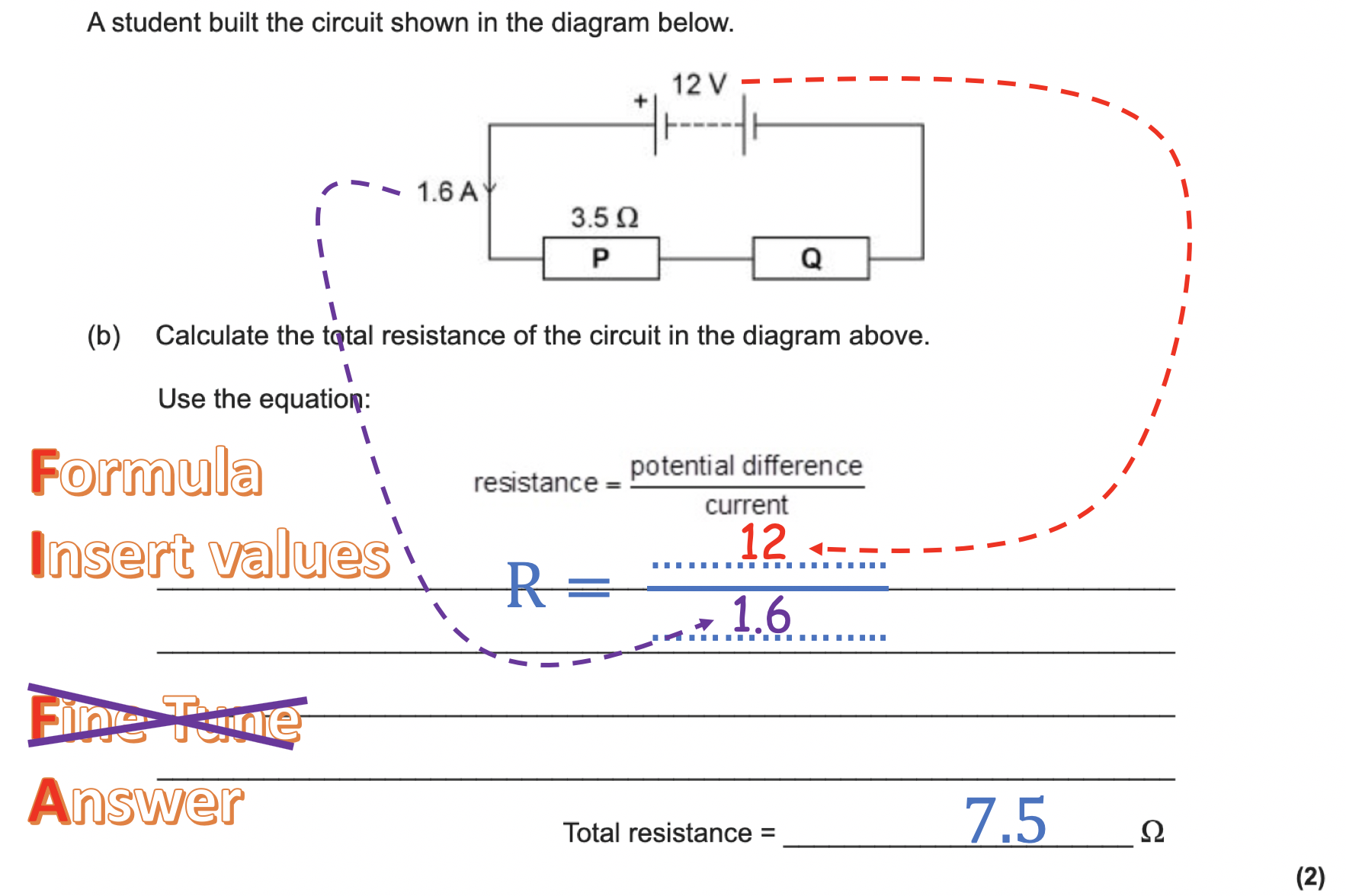

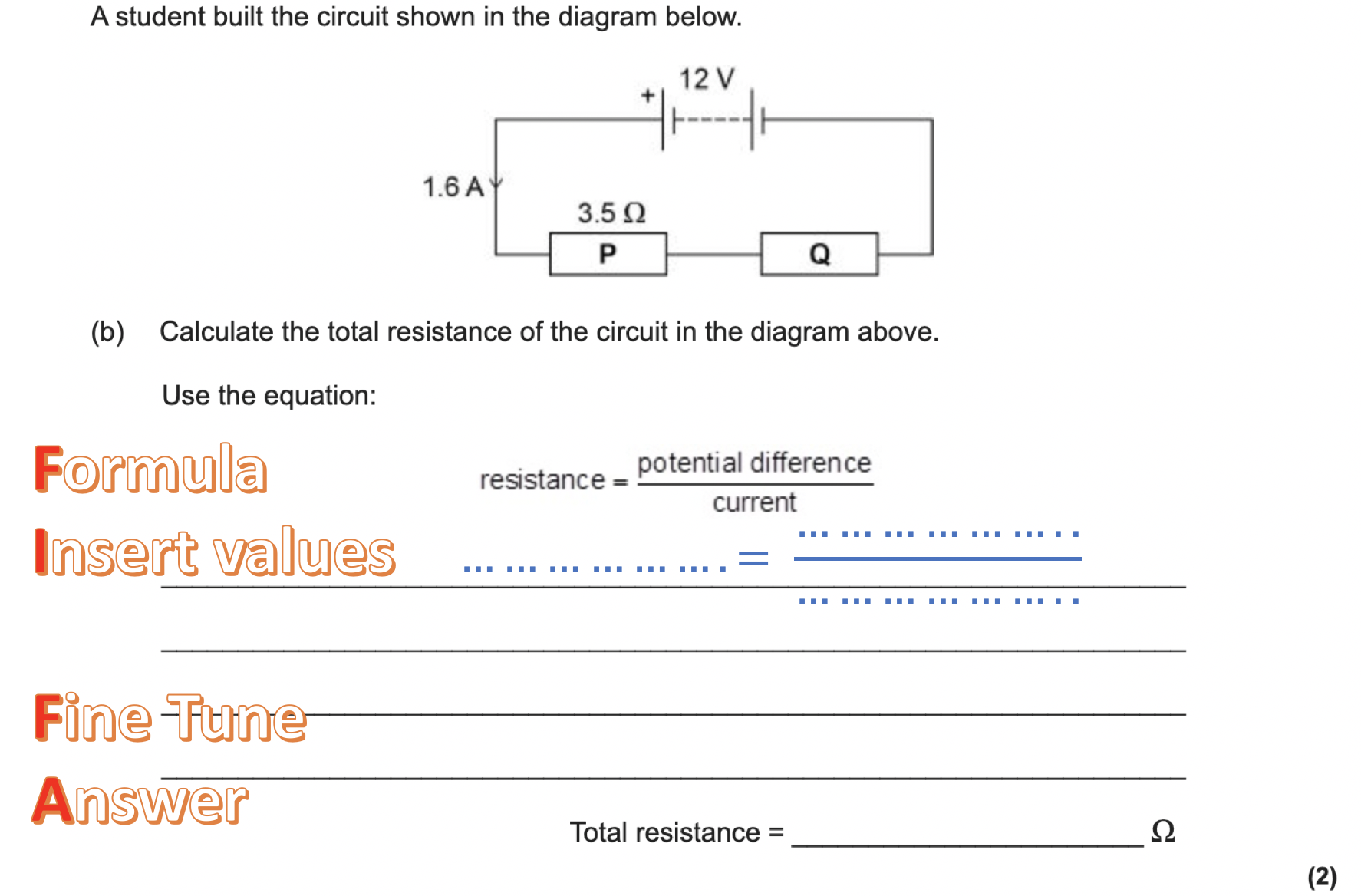

### The FIFA method and low demand Foundation tier calculation questions

I teach the FIFA method to all students, but it’s essential to show how the method can be adapted for low demand Foundation tier questions. (Note: improving student performance on these questions is probably a more significant and quicker and easier win than working on their “extended answer” skills).

For the treatment below, the assumption is that students have already been taught the FIFA method in a number of contexts and that we are teaching them how to apply it to the calculation questions on the foundation tier paper, perhaps as part of an examination skills session.

For the majority of low demand questions, the required formula will be supplied so students will not need to recall it. What they will need, however, is support in inserting the values correctly. Providing a framework as shown below can be very helpful:

Also, clearly indicating where the data came from is useful.

The fine tune stage is not needed, so we can move straight to the answer.

Note also that the FIFA method can be applied to all calculation questions, not just the ones that could be answered using formula triangle methods, as in part (c) of the question above.

### And finally…

I believe that using FIFA helps to make our thinking and methods in Physics calculations more explicit and clearer for students.

My hope is that science teachers reading this will give it a go.

You can read about using the FIFA system for more challenging questions by clicking on these links: ‘Physics six mark calculation? Give it the old FIFA-one-two!‘ and ‘Using the FIFA system for really challenging GCSE calculations‘.

PS If you have enjoyed this, you might also enjoy Dual Coding SUVAT Problems and also Magnification using the Singapore Bar Model.

*Disclaimer: AQA has not endorsed the FIFA method. I describe it as “AQA mark scheme-friendly” using my professional own judgment and interpretation of published AQA mark schemes.
