Physics

The Life and Death of Stars

e=mc2andallthat3 Comments

Stars, so far as we understand them today, are not “alive”.

Now and again we saw a binary and a third star approach one another so closely that one or other of the group reached out a filament of its substance toward its partner. Straining our supernatural vision, we saw these filaments break and condense into planets. And we were awed by the infinitesimal size and the rarity of these seeds of life among the lifeless host of the stars. But the stars themselves gave an irresistible impression of vitality. Strange that the movements of these merely physical things, these mere fire-balls, whirling and traveling according to the geometrical laws of their minutest particles, should seem so vital, so questing.

Olaf Stapledon, Star Maker (1937)

Star Maker Cover

And yet, it still makes sense to speak of a star being “born”, “living” and even “dying”.

We have moved on from Stapledon’s poetic description of the formation of planets from a filament of star-stuff gravitationally teased-out by a near-miss between passing celestial orbs. This was known as the “Tidal Hypothesis” and was first put forward by Sir James Jeans in 1917. It implied that planets circling stars would be an incredibly rare occurrence.

Today, it would seem that the reverse is true: modern astronomy tells us that planets almost inevitably form as a nebula collapses to form a star. It appears that stars with planetary systems are the norm, rather than the exception.

Be that as it may, the purpose of this post is to share a way of teaching the “life cycle” of a star that I have found useful, and that many students seem to appreciate. It uses the old trick of using analogy to “couch abstract concepts in concrete terms” (Steven Pinker’s phrase).

Screen Shot 2018-06-24 at 16.49.15.png

I find it humbling to consider that currently there are no black dwarf stars anywhere in the observable universe, simply because the universe isn’t old enough. The universe is merely 13.7 billion years old. Not until the universe is some 70 000 times its current age (about 1015 years old) will enough time have elapsed for even our oldest white dwarfs to have cooled to become a black dwarf. If we take the entire current age of the universe to be one second past midnight on a single 24-hour day, then the first black dwarfs will come into existence at 8 pm in the evening…

And finally, although to the best of our knowledge, stars are in no meaningful sense “alive”, I cannot help but close with a few words from Stapledon’s riotous and romantic imaginative tour de force that is yet threaded through with the disciplined sinews of Stapledon’s understanding of the science of his day:

Stars are best regarded as living organisms, but organisms which are physiologically and psychologically of a very peculiar kind. The outer and middle layers of a mature star apparently consist of “tissues” woven of currents of incandescent gases. These gaseous tissues live and maintain the stellar consciousness by intercepting part of the immense flood of energy that wells from the congested and furiously active interior of the star. The innermost of the vital layers must be a kind of digestive apparatus which transmutes the crude radiation into forms required for the maintenance of the star’s life. Outside this digestive area lies some sort of coordinating layer, which may be thought of as the star’s brain. The outermost layers, including the corona, respond to the excessively faint stimuli of the star’s cosmical environment, to light from neighbouring stars, to cosmic rays, to the impact of meteors, to tidal stresses caused by the gravitational influence of planets or of other stars. These influences could not, of course, produce any clear impression but for a strange tissue of gaseous sense organs, which discriminate between them in respect of quality and direction, and transmit information to the correlating “brain” layer.

Olaf Stapledon, Star Maker (1937)

Crossing Cognitive Chasms With P-prims

e=mc2andallthat11 Comments
Crossing a cognitive chasm . . .

Apparently, roughly 10% of humans still believe that the Earth is larger than the Sun. Do they believe this because they haven’t been properly educated? Possibly. Do they believe this because they’re stupid? Probably not.

In fact, the most likely explanation is that the individuals concerned just haven’t thought that much about it. The Earth looks big; the Sun looks like a small disc in the sky; ergo, the Sun is smaller than the Earth.

The individuals are relying on what Andrea diSessa (1988) would call a phenomenological primitive or p-prim: “These are simple abstractions from common experiences that are taken as relatively primitive in the sense that they generally need no explanation; they simply happen.”

What is a p-prim (phenomenological primitive)?

A p-prim is a pattern of thought that is applied across a range of contexts. For example, the “Ohm’s Law” p-prim — the idea that increased “effort” invariably leads to a larger “outcome” and that increased “resistance” always yields a smaller “outcome” — is routinely applied not just to the domain of electrical circuits, but to the physical world in terms of pushing and pulling objects, and not least to the domain of psychology in the context (say) of persuading a reluctant person to perform an action.

Examples of other p-prims would include:

  • The “Father Dougal” p-prim: things that look small really are small; large things always look bigger than small things.
  • The “More Is Better” p-prim: that more of any quantity is invariably better than a smaller amount.
  • The “Dynamic Balance” p-prim: equal and opposite competing “forces” or “influences” can produce an equilibrium or “static outcome”.

P-prims are not acquired by formal teaching. They are abstractions or patterns extracted from commonplace experiences. They are also, for the most part, primarily unspoken concepts: ask a person to justify a p-prim and the most likely answer is “because”!

Also, p-prims exist in isolation: people can easily hold two or more contradictory p-prims. The p-prim that is applied depends on context: in one situation the “Ohm’s Law” p-prim might be cued; in another the “Dynamic Balance” p-prim would be cued. Which p-prim is cued depends on the previous experience of the individual and the aspects of the situation that appear most significant to that individual at that particular time.

The KIP (Knowledge in Pieces) Model

diSessa integrates these p-prims (and many others) into a “Knowledge in Pieces” model:

[I]ntutive physics is a fragmented collection of ideas, loosely connected and reinforcing, having none of the commitment or systematicity that one attributes to theories.

The model is summarised more poetically by Dashiell Hammett (quoted by diSessa):

Nobody thinks clearly, no matter what they pretend. Thinking’s a dizzy business, a matter of catching as many of those foggy glimpses as you can and fitting them together the best you can. That’s why people hang on so tight to their beliefs and opinions; because, compared to the haphazard way in which they arrived at, even the goofiest opinion seems wonderfully clear, sane, and self-evident. And if you let it get away from you, then you’ve got to dive back into that foggy muddle to wangle yourself out another to take its place.

— Dashiell Hammett, The Dain Curse

So, for example, a person might respond to the (to them) out-of-left-field question of “Which is bigger: the Earth or the Sun?” by simply selecting what seems to them a perfectly appropriate p-prim such as the “Father Dougal” p-prim: the Sun looks like a small disc in the sky therefore it is smaller than the Earth. It is important to note that this process often happens without a great deal of thought. The person reaches into a grab-bag of these small units of thought and takes hold of one that, at least at first glance, seems applicable to the circumstances. The person is simply applying their past experience to a novel situation.

Picking Your P-prim

However, as Anne Nelmes (2004) points out, the problem is that often the wrong p-prim is cued and applied to the wrong situation. As science teachers, is there a way that we can encourage the selection of more suitable p-prims?

Nelmes believes that there is:

Analogy has long been used to aid understanding of scientific concepts, both in and out of the classroom. Rather than trying to overtly change the misconception into the scientific conception, it may be as, or more, effective and certainly less time consuming to cue the right idea using analogy on a very low key level, without the pupils even realising that an analogy has been used. The idea of cueing correct ideas comes from work done by diSessa and others on p-prims (phenomenological primitives). These are small knowledge units which are cued to an active state to explain phenomena.

It is hoped the correct p-prim will be cued by use of the analogy and, if cued repeatedly, will strengthen.

One example presented by Nelmes that I find quite persuasive is in the context of students’ difficulty in accepting that good absorbers of heat radiation are also good emitters of heat radiation. A matt black surface will absorb a substantial fraction of the infrared radiation falling on it; however, matt black surfaces are also the most effective emitters of infrared radiation.

aborbers emitters

This seems a concept-change-too-far for many students; particularly as it often follows hard on the heels of good conductor = poor insulator and good insulator = poor conductor. Students find it hard to accept that a substance that is good at one thing can also be good at its opposite.

Nelmes suggests cueing a more appropriate p-prim for this context by the use of low key analogies such as:

  • Effective communicators are good at taking in information and good at giving out information.
  • Effective netball players are good at throwing the ball and catching the ball.

Nelmes’ research suggests that the results from such strategies may be modest but are generally positive. One telling example is the fact that many student answers featured “you” as in “I think this because when you are good at something, radiating, you are usually good at the other, absorbing heat.”

As Nelmes notes, the use of the personal pronoun in such answers suggests that students had, perhaps, absorbed the bridging analogy unconsciously.

Be that as it may, I think the p-prim and bridging analogy strategy is one I will be attempting to add to my teaching repertoire.

References

diSessa, A. A. (1988). Knowledge in pieces. In G. Forman & P. B. Pufall (Eds.), Constructivism in the computer age (pp. 49-70). Hillsdale, NJ, US: Lawrence Erlbaum Associates, Inc.

Nelmes, A. (2004). Putting conceptions in their place: using analogy to cue and strengthen scientifically correct conceptions.

Electrifying Engelmann

e=mc2andallthat6 Comments

It is a long-standing and melancholy truth that, despite the best efforts of many legions of Physics teachers, many students continue to not only dislike electricity, but to hate it with the white-hot intensity of a million suns.

What we have here, I think, is a classic failure to communicate.

A final fact is that samenesses and differences of examples are more obvious when the examples are juxtaposed. This fact implies that the continuous conversion of examples provides the clearest presentation of samenesses and, differences because it creates the changes that occur from one example to the next.

— Siegfried Engelmann and Douglas Carmine, Theory of Instruction (1982) p.46

Looking at my own teaching, I certainly attempt to juxtapose a number of circuits. I really want to highlight the similarities and differences between circuits in order to better develop my students’ understanding. But the problem is that both limited resources and other practical considerations mean that the juxtapositioning cannot happen by continuous conversion, except very rarely.

For example, I would set up (or ask students to set up) a circuit with a single bulb with an ammeter, then I (or we) would disassemble the circuit and rebuild it with the ammeter in a different position, or a second bulb added in series or in parallel . . .

It occurs to me that what we are relying on to thread these juxtapositions together in students’ minds is a sequence of circuit diagrams. I suppose it’s another case of the curse of knowledge writ large: experts and novices think differently.

As a beginning teacher, I remember being genuinely shocked that many students found it easier to interpret a photograph or a 3D drawing rather than the nice, clutter-free, minimalist lines of a circuit diagram.

Without a doubt, many students retain strong visual impressions of many of the circuit diagrams they encounter, but they do not parse and decode the diagrams in the same way as their teachers do.

And that, I think, is the major problem when we are introducing electric circuits.

But what to do?

— R. S. Thomas, The Cure

Can we introduce the important aspects of electrical circuits by continuous conversion of examples?

I think we can. And what is more, I think it will be more effective than the itty-bitty assembly and disassembly of circuits that I have practiced to date.

Conservation of electrical current (and current in parallel circuits) by continuous conversion

Parallel Circuit

This is introduced with a teacher demonstration of the above circuit. Students are invited to note the identical readings on both ammeters and asked to explain why they are identical. They are then asked to predict the effect of adding a second bulb in parallel. The teacher then adds the second bulb by connecting the flying lead. The process is repeated with the third and fourth bulbs, with the teacher testing students’ understanding by asking them to predict the change in current readings as bulbs are added and removed. The teacher also tests students’ understanding of the conservation of current by asking students to predict whether the reading on both ammeters will be the same or different as bulbs are added and removed.

I find it useful to include a bulb that is not identical to the other three. It should be noticeably brighter or dimmer than the other three with the same p.d. so that students do not make the incorrect inference that the current always increases or decreases in equal steps when the circuit is changed.

The teacher could also draw the original circuit on a student whiteboard and ask students to do likewise. The changes that are about to be made could be described and students could be asked could alter the picture/circuit diagram and write their prediction on their whiteboards. They could then compare their version with the teacher’s and their prediction could be quickly tested by making the proposed changes “live” in front of the students.

If resources and time permit, students could then, of course, go on to construct their own parallel circuits as a class practical. However, I think it is important that these vital, foundational ideas are introduced (or re-introduced!) via a teacher demonstration to avoid possible cognitive overload for students.

Series circuits by continuous conversion

Series Circuit

In this demonstration circuit, four of the three bulbs are short-circuited so that they are initially unlit. The teacher asks students to explain only one bulb in the circuit is lit: it is helpful if they have previously encountered parallel circuits and can explain this in terms of electrical current taking the “easier” route (assuming they have not yet encountered the concept of electrical resistance).

Again, the two ammeters allow the teacher to emphasise and test students understanding of the idea that current is conserved.

The teacher then asks students to predict the change in current reading when switch X is opened: will it increase or decrease? Why would it increase or decrease? The process is repeated with switches Y and Z and students’ understanding is tested by asking them to predict the effect on the current reading of opening or closing X, Y or Z.

As before, the teacher would amend her circuit diagram on her student whiteboard and students would do likewise. For example: “I am going to open switch Y. Change the circuit diagram. Show me. What will happen to the reading on the left hand ammeter? What will happen to the reading on the right hand ammeter? Explain why.”

Again, I recommend that at least one out of the four bulbs in not identical to the other three to help prevent students from drawing the incorrect inference that the current will always increase or decrease in identical steps.

When Harold Met William

e=mc2andallthat3 Comments

Legend has it that in 1988, U.S. Presidential candidate Michael Dukakis opened an election rally in front of a huge crowd in a red state with the ringing words: “This joke will appeal to the Latin scholars amongst you…” He went on to lose decisively to George H. W. Bush.

On that note, this joke will appeal to all the Physics teachers (and other aficionados of the dot-and-cross convention).

Harold

For the non-physicists amongst you, this is an illustration of the dot-and-cross convention, which allows us to represent 3D objects on a 2D diagram. The dot represents a vector emerging out of the plane of the paper (think of an arrow coming towards you) and the cross represents a vector directed into the plane of the paper (think of an arrow going away from you).

520px-VFPt_Solenoid_correct2.svg
A solenoid (electromagnet) represented using the dot-and-cross convention. From http://www.wikiwand.com/en/Solenoid

I’ll get my coat…

Engelmann (and John Stuart Mill) Revisited

e=mc2andallthat6 Comments

Even for the most enthusiastic and committed of us, Engelmann and Carnine’s Theory of Instruction (1982) is a fabulously intimidating read.

I have written about some of the ideas before, but a recent conversation with a fellow Physics teacher (I’m looking at you, @DeepGhataura) suggested to me that a revisit might be in order.

In a nutshell, we were talking about sets of examples. Engelmann and Carnine argue that learners learn when they construct generalisations or inferences from sets of examples. It is therefore essential that the sets of examples are carefully chosen and sequenced so that learners do not accidentally generate false inferences. A “false inference” in this context is any one that the instructor does not intend to communicate.

Engelmann and Carnine painstakingly constructed a set of logical rules that they hoped would minimise (or, more ambitiously, completely eliminate) the possibility of generating false inferences. These include the sameness principle of juxtaposition and the difference principle of juxtaposition.

However, in 2011 Carnine and Engelmann realised that they had, in a sense, been re-inventing the wheel as the same logical rules had been formulated by philosopher John Stuart Mill in A System of Logic (1843).

They outlined their system using Mill’s terms and language in the book Could John Stuart Mill Have Saved Our Schools? (2011).



The Method of Difference (The Difference Principle of Juxtaposition)

How can we use examples to communicate a concept to learners so that the possibility of their drawing false inferences is minimised?

The Method of Difference seeks to establish the limits of a given concept A by explicitly considering not-A.

Imagine a learner who did not understand the concept of blue. We would introduce the concept by showing (say) a picture of a blue bird and saying “This is blue.” We would then show a picture of a bird identical in every respect except that it’s colour was (say) green and say “This is not blue.”

So-far-so-blindingly-obvious, you might say. What you might not immediately appreciate is that applying this simple method rules out a large set of possible misconceptions. Without explicitly considering not-A, a learner might, with some justification, conclude that blue meant “has a beak” or “has feathers”. The Method of Difference rules out these false inferences.

Mind your P’s and Q’s

For a beginning reader, the letters p, q, b and d are problematic since they all share the same basic shape. The difference between them is a difference of orientation. Carnine and Engelmann suggest writing the letter ‘p’ on a transparent sheet and rotating and flipping the sheet to explicitly teach the difference between p and not-p.

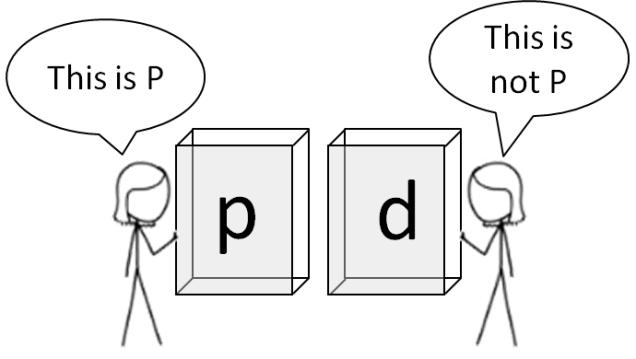

PND

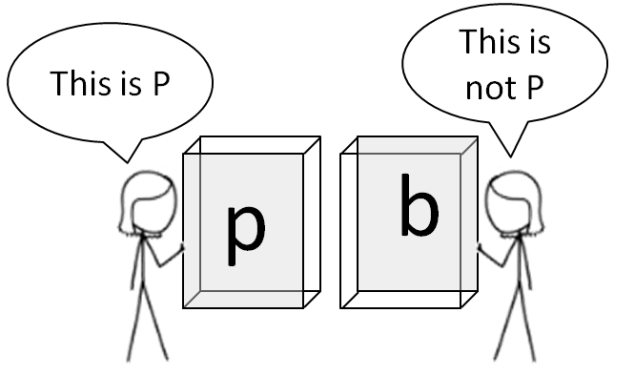

PNB

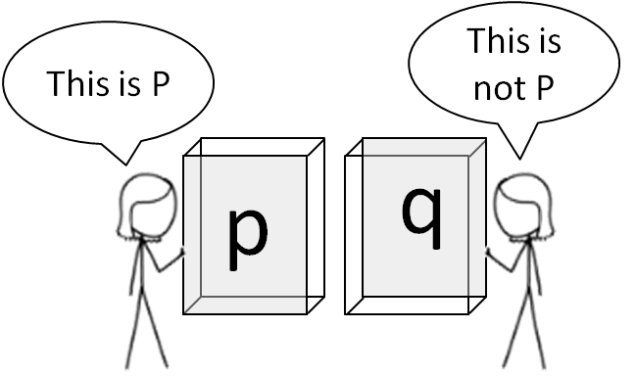

PNQ

Could this be used in Physics teaching?



Don’t zig when you ought to zag

Possibly — one recurring problem that I’ve noticed is that some A-level students routinely mix up magnetic and electric fields. They apply Coulomb’s Law when they should be applying F = BIl , and apply Fleming’s Left Hand Rule where it has no business being applied.

It seems reasonable to assume that it is not a lack of knowledge that is holding them back, but rather a misapplication of knowledge that they already possess. In other words, they are drawing the wrong inference from the example sets that have been presented to them.

Could using the Method of Difference at the beginning of the teaching sequence stop learners from drawing false inferences about the nature of electric and magnetic fields?

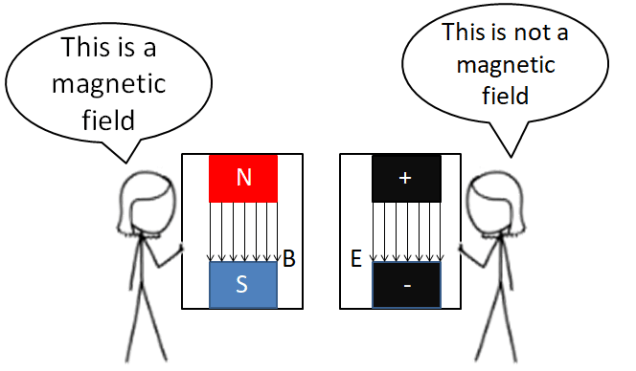

BandEfields1

BandEfields2

You know, I rather think it might…

Starting From Here

e=mc2andallthat6 Comments

It’s a variation on a classic Celtic joke which I’m sure that you’ve heard before, but here it is anyway.

Motorist: Can you tell me the way to Llanpumsaint please?

Welshman: Why yes, but I wouldn’t start from here if I were you…

I wouldn’t start from here. The joke, of course, is that we rarely have a choice of where we start from. We start from here because here is where we are.

David Hammer (2000) in “Student Resources For Learning Introductory Physics” offers a fascinating perspective on the varied points that students start from as they begin to learn physics. He likens a student’s preexisting conceptual structures to the computational resources used by programmers. These conceptual resources inside our students’ heads can be (loosely) compared to “chunks of computer code”, if you will. He goes on to point out that:

Programmers virtually never write their programs from scratch. Rather, they draw on a rich store of routines and subroutines, procedures of various sizes and functions . . . Those who specialize in graphics have procedures for translating and rotating images, for example, which they use and reuse in a variety of circumstances. And, often, a programmer will try to use a procedure in a way that turns out to be ineffective.

Image from: https://www.tripadvisor.co.uk/LocationPhotos-g1545129-w2-Llanpumsaint_Carmarthenshire_Wales.html#184967057. Yes, they really do have an elephant there.

Hammer argues that although many teachers have an instinctive but unspoken understanding of the conceptual resources that students possess, all-too-often it is assumed that any preconception is automatically a misconception that must be rooted out and replaced. Hammer suggests that a more productive approach is to understand and use the often detailed knowledge that students already possess.

Refining “Raw Intuitions”

For example, Hammer summarises the work of Andrew Elby who suggests a strategy for refining the raw intuitions that students have.

A truck rams into a parked car, which has half the mass of the truck. Intuitively, which is larger during the collision: the force exerted by the truck on the car, or the force exerted by the car on the truck? That most students responded that the truck exerts a larger force on the car than the car exerts on the truck is not surprising; this is a commonly recognized “misconception.”

In other words, students fail to apply Newton’s Third Law correctly to the situation, which would predict that the forces acting on two such objects are equal and opposite.

However, all is not lost as Elby believes that his students do have a fundamentally correct intuition about the situation. They rightly intuit that the car will respond twice as much as the truck. The problem is to refine this intuition so that it is consistent with the laws of Newtonian physics. Elby posed a follow up question:

Suppose the truck has mass 1000 kg and the car has mass 500 kg. During the collision, suppose the truck loses 5 m/s of speed. Keeping in mind that the car is half as heavy as the truck, how much speed does the car gain during the collision? Visualize the situation, and trust your instincts.

The students, thus guided, came to the conclusion that because the truck lost 5 m/s of speed, the car gained 10 m/s of speed. Since the mass of the car is half the mass of the truck, the car gains exactly the amount of momentum lost by the truck. Since the exchange occurred over the exact same time period, the rate of change of momentum, and hence the force acting on each object, is equal.

In other words, Elby used the students’ intuition that “the car reacts twice as much as the truck” as the raw material to build a correct and coherent physical understanding of the situation.

Hammer then makes what I think is a very telling point: like computer subroutines, intuitions are neither correct or incorrect. They become correct or incorrect depending on how they are used.

In this way, a resources-based account of student knowledge and reasoning does not disregard difficulties or phenomena associated with misconceptions. Rather, on this view, a difficulty represents a tendency to misapply resources, and misconceptions represent robust patterns of misapplication.

As teachers, we do not have the luxury of selecting our starting points. Often, I think that talk of student misconceptions resembles the “I wouldn’t start from here” joke. The misconception has to be eliminated before the proper teaching can start.

As teachers, we don’t have the luxury of selecting our starting points. We start from where our students start. We’re teachers: we start from here.

References
Elby, A. (2001). Helping physics students learn how to learn. American Journal of Physics, 69(S1), S54-S64. http://134.68.135.20/JiTT_NMSU_workshop/pdfs/HelpingStudentsLearn_Elby.pdf
Hammer, D. (2000). Student resources for learning introductory physics. American Journal of Physics, 68(S1), S52-S59. http://mapmf.pmfst.unist.hr/~luketin/Physics_education/resources_Hammer.htm

The p-prim path to enlightenment…?

e=mc2andallthat8 Comments

The Duke of Wellington was once asked how he defeated Napoleon. He replied: “Napoleon’s plans were made of wire. Mine were made of little bits of string.”

In other words, Napoleon crafted his plans so thay they had a steely, sinewy strength that carried them to completion. Wellington conceded that his plans were more ramshackle, hand-to-mouth affairs. The difference was that if one of of Napoleon’s schemes broke or miscarried, it proved impossible to repair. When Wellington’s plans went awry, he would merely knot two loose bits of string together and carry on regardless.

I believe Andrea diSessa (1988) would argue that much of our knowledge, certainly emergent knowledge, is in the form of “little bits of string” rather than being organised efficiently into grand, coherent schemas.

For example, every human being has a set of conceptions about how the material world works that can be called intuitive physics. If a ball is thrown up in the air, most people can make an accurate prediction about what happens next. But what is the best description of the way in which intuitive physics is organised?

diSessa identifies two possibilities:

The first is an example of what I call “theory theories” and holds that it is productive to think of spontaneously acquired knowledge about the physical world as a theory of roughly the same quality, though differing in content from Newtonian or other theories of the mechanical world [ . . .]

My own view is that . . . intuitive physics is a fragmented collection of ideas, loosely connected and reinforcing, having none of the commitment or systematicity that one attributes to theories.

[p.50]

diSessa calls these fragmented ideas phenomenological primitives, or p-prims for short.

David Hammer (1996) expands on diSessa’s ideas by considering how students explain the Earth’s seasons.

Many students wrongly assume that the Earth is closer to the Sun during summer. Hammer argues that they are relying, not on a misconception about how the elliptical nature of the Earth’s orbit affects the seasons, but rather on a p-prim that closer = stronger.

The p-prims perspective does not attribute a knowledge structure concerning closeness of the earth and sun; it attributes a knowledge structure concerning proximity and intensity, Moreover, the p-prim closer means stronger is not incorrect.

[p.103]

diSessa and Hammer both argue that a misconceptions perspective assumes the existence of a stable cognitive structure where, in fact, there is none. Students may not have thought about the issue previously, and are in the process of framing thoughts and concepts in response to a question or problem. In short, p-prims may well be a better description of evanescent, emergent knowledge.

Hammer points out that the difference between the two perspectives has practical relevance to instruction. Closer means stronger is a p-prim that is correct in a wide range of contexts and is not one we should wish to eliminate.

The art of teaching therefore becomes one of refining rather than replacing students’ ideas. We need to work with students’ existing ideas and knowledge — piecemeal, inarticulate and applied-in-the-wrong-context as they may be.

Let’s get busy with those little bits of conceptual string. After all, what else have we got to work with?

REFERENCES

diSessa, A. (1988). “Knowledge in Pieces”. In Forman, G. and Pufall, P., eds, Constructivism in the Computer Age, New Jersey: Lawrence Erlbaum Publishers

Hammer, D. (1996). “Misconceptions or p-prims” J. Learn Sci 5 97

IoP Energy: Once More Unto The Breach…

e=mc2andallthat9 Comments

Why do we make these analogies? It is not just to co-opt words but to co-opt their inferential machinery. Some deductions that apply to motion and space also apply nicely to possession, circumstances and time. That allows the deductive machinery for space to be borrowed for reasoning about other subjects. […] The mind couches abstract concepts in concrete terms.

— Steven Pinker, How The Mind Works, p.353 [emphasis added]

I am, I must confess, a great believer in the power of analogy.

Although an analogy is, in the end, only an analogy and must not be confused with the thing itself, it can be helpful.

As Steven Pinker notes above, the great thing about concrete analogies and models of abstract concepts is that they allow us to co-opt the inferential machinery of well-understood, concrete concepts and apply them to abstract phenomena: for example, we often treat time as if it were space (“We’re moving into spring”, “Christmas will soon be here”, and so on).

To that end, I propose introducing the energy stores and pathways of the IoP model to KS3 and GCSE students as tanks and taps.

Energy Stores = tanks

Energy Pathways = taps

Tank and taps

Consider the winding up of an elastic band.

tank and taps 3

This could be introduced to students as follows:

tank and taps 2.PNG

One advantage I think this has over one of my previous efforts is that I am not inventing new objects with arbitrary properties; rather, I am using familiar objects in the hope of co-opting their inferential machinery.

Suggestions, comments and criticisms are always welcome.

My propositions are elucidatory in this way: he who understands me finally recognises them as senseless, when he has climbed out through them, on them, over them. (He must so to speak throw away the ladder, after he has climbed up on it.)

He must surmount these propositions; then he sees the world rightly.

— Ludwig Wittgenstein, Tractatus Logico-Philosophicus (1922), 6.54





IoP Energy: It’s About The Physics, Stupid!

e=mc2andallthat14 Comments

[I]t is ambition enough to be employed as an under-labourer in clearing the ground a little, and removing some of the rubbish that lies in the way to knowledge;- which certainly had been very much more advanced in the world, if the endeavours of ingenious and industrious men had not been much cumbered with the learned but frivolous use of uncouth, affected, or unintelligible terms, introduced into the sciences

John Locke, An Essay Concerning Human Understanding (1690)

OK, so I was wrong.

In a previous blog, I suggested a possible “diagrammatic” way of teaching energy at GCSE which I thought was in line with the new IoP approach. Thanks to a number of frank (but always cordial!) discussions with a number of people — and after a fair bit of denial on my part — I have reluctantly reached the conclusion that I was barking up the wrong diagrammatic tree.

enoji19

The problem, I think, is that unconsciously I was too caught up in the old ways of thinking about energy. I saw implementing the new IoP approach as being primarily about merely transferring (if you’ll pardon the pun) the vocabulary. “Kinetic store” instead of “kinetic energy”? Check. “Gravity store” instead of “gravitational potential energy”? Check. “Radiation-pathway-thingy” instead of “light energy”? Check.

Let’s look at the common example of a light bulb and I will try to explain.

Using the old school energy transfer paradigm, we might draw the following:

enoji20

In spite of its comforting familiarity, however, there are problems with this: in what way does it advance our scientific understanding beyond the bare statement “electricity supplied to the bulb produces light and heat”. Does adding the word “energy” make it more scientific?

For example, when we are considering “light energy”, are we talking about the energy radiated as visible light or the total energy emitted as electromagnetic waves? It is unclear. When we are considering “heat energy” are we talking about the energy emitted as infrared rays or the increase in the internal energy of the bulb and its immediate surroundings? Again, it is unclear.  In the end, explanations of this stripe are all-too-similar to that of Moliere’s doctors in The Imaginary Invalid, who explained that the sleep-inducing properties of opium were due to its “dormative virtues”; that is to say, sleep was induced by its sleep-inducing properties.

The problem with the energy transfer paradigm is that it draws a veil over the natural world, but it is a veil that obscures rather than simplifies.

The IoP, after much debate, collectively rolled up its sleeves and decided that it was time to take out the trash. In other words, they wanted to remove the encumbrance of terms that had, over time, essentially become unintelligible.

The new IoP model distinguishes between stores and pathways. For example, an object lifted above ground level is a gravity store because the energy is potentially available to do work. Pathways, on the other hand, are a means of transferring energy rather than storing energy. For example, the light emitted by a bulb is not available to do work in the same sense as the energy of a lifted weight. It is, within the limits of the room containing the bulb, a transient phenomenon. Many photons will be absorbed by the surfaces within the room; a small proportion of photons will escape through the window and embark on a journey to Proxima Centauri or beyond, perhaps.

Now let’s look at my well-meaning diagrammatic version of the energy transfers associated with a light bulb:

pathway-bulb

The stores are “leak-proof buckets” holding the “orange liquid” that represents energy. The pathways are “leaky containers” that enable energy to be transferred from one store to another. I have to admit, I was quite taken with the idea.

The first criticism that gave me pause for thought was the question: why mention the thermal store of the bulb? Surely that’s a transient phenomenon that does not add to our understanding of the situation. Switch off the electric current and how long would the thermal store be significant? Wouldn’t it be better to limit the discussion to two snapshots at the beginning (electrical pathway in) and end (radiative pathway out)?

The second question was: what does the orange liquid in the pathways represent? In my mind, I thought that the level might represent the rate of transfer of energy. Perhaps a high power transfer could be represented by a nearly full pathway, a low power transfer by a lower level.

But this led to what I thought was the most devastating criticism: why invent objects and assign clever (but essentially arbitrary) rules about the way they interact when you could be talking about real Physics instead?

Is there any extra information in the phrase “light energy” as opposed to simply the word “light”?

Blackbody2
Efficiency of a bulb: find the total energy emitted as visible light and divide by the total energy emitted as light of all wavelengths.

And that’s when I realised that I wasn’t helping to take out the trash; in fact, I was leaving the rubbish in place and merely spray painting it orange.

Now don’t get me wrong, I think there’s still a long road ahead of us before we become as comfortable with the IoP Energy newspeak as we were with the old paradigm. As a first step, I suggest all those interested should read and contribute to Alex Weatherall’s excellent Google doc summary to be found here. But I honestly believe that it’s a journey worth taking.

Opium facit dormire.
A quoi respondeo,
Quia est in eo
Vertus dormitiva

— Moliere, The Imaginary Invalid (1673)

IoP Energy: Notes Towards A Diagrammatic Teaching Approach?

e=mc2andallthat40 Comments

After a fascinating discussion led by the excellent Alex Weatherall (click here to participate in his Google doc Physics-fest — and follow @A_Weatherall on Twitter for more), I was thinking on possible teaching approaches for energy.

Although I think the IoP‘s (the UK’s Institute of Physics) approach is conceptually sound (see previous post here) and addresses many of the shortcomings in the traditional and time-hallowed “forms of energy” approach, many Physics teachers (myself included) are struggling to find direct and simple ways of communicating the highly nuanced content to students.

For example, to describe a filament bulb:

A (filament) light bulb is a device that takes energy in (input) through an electrical pathway (the current) to the thermal energy store of the filament (the metal is getting hotter) which transfers the energy through the radiation pathways of light (visible and IR). There is an increase in the thermal store of the room due to transfer via the heating pathway. The less energy transferred by heating compared to visible light the more efficient the light bulb.

I think this is in accordance with the letter and spirit of the “IoP Energy Newspeak” approach; but sadly, I can picture many students struggling to understand this, even though it was written by many hands (including mine) with the best of intentions.

But then I began to think of adopting a diagrammatic “enoji” approach. (See here for suggested energy icons, or energy + emoji = enoji)



Diagrams for Stores and Pathways

An energy store is represented by a “watertight” container. For example, the gravity store of a ball at the top of a slope could be represented thus:

gravity-store

Because it is an energy store, the amount of energy (represented by the level of orange liquid) in the store remains constant. Energy will not spontaneously leave the store. Energy stores don’t have holes. The unit we use with energy stores is the joule.

However, energy pathways do have holes. In contrast to an energy store, the energy level in a pathway will spontaneously decrease as the energy is shifted to another store.

pathway

To keep the energy level constant in a pathway, it needs to be constantly “topped up” by the energy from an energy store.

Since a pathway represents a “flow” of energy, the unit we use with an energy pathway is the watt (one joule per second). The “orange liquid level” in the pathway icon could therefore represent the amount of energy flowing through in one second (although I concede that this idea, though promising, needs more thought).



“Enoji Energy Shift” Diagrams

Adopting this convention, the “enoji energy shift” diagram for a ball rolling down a slope might look like this:

pathway2

An energy store does not have any holes — unless it is linked to a pathway, like the gravity store above. Energy will move in the direction indicated by the energy pathway icon.

Simplified in a student exercise book, it could be represented like this:

simplepathway1

The small upward and downward arrows are an attempt to indicate what happens to the energy level over time.



The Filament Lightbulb “Enoji Energy Shift” Diagram

This could be represented in a student exercise book like this:

pathway-bulb

Since there are no small up and down arrows on the pathway or thermal store enojis, this indicates that the energy levels are relatively stable (provided we have a constant input of energy from the power station). However, the energy level of the thermal store of the surroundings just keeps on going up…



And finally…

Please note this is a work in progress.

I fully expect many teachers will think that the suggested set of conventions may well prove more confusing for students.

However, what I am attempting to do is to give students a set of simple, coherent yet serviceable analogies. In other words, this might provide a conceptual “tool kit” of physical representations of very abstract processes involving energy.

I hope readers will agree that it offers some scope for further development. Comments, criticisms and suggestions would be most welcome.
